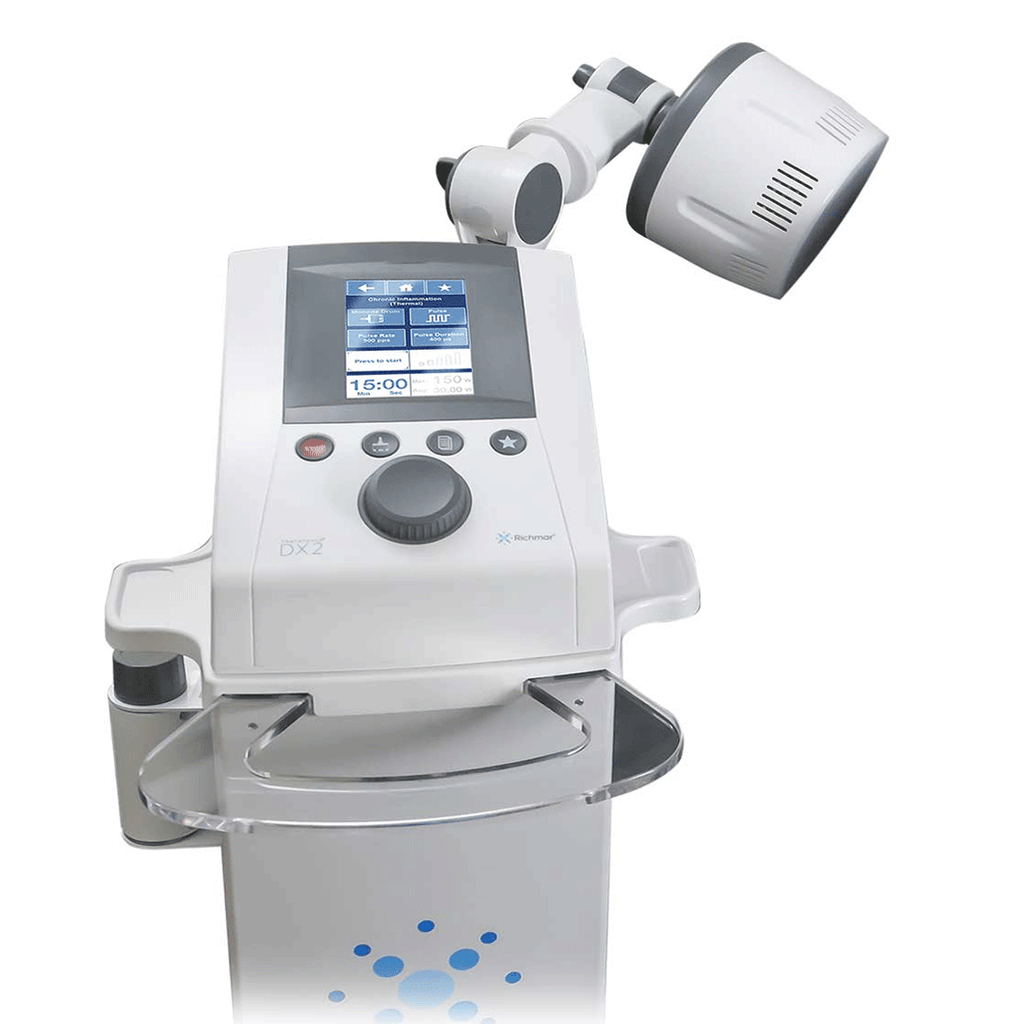

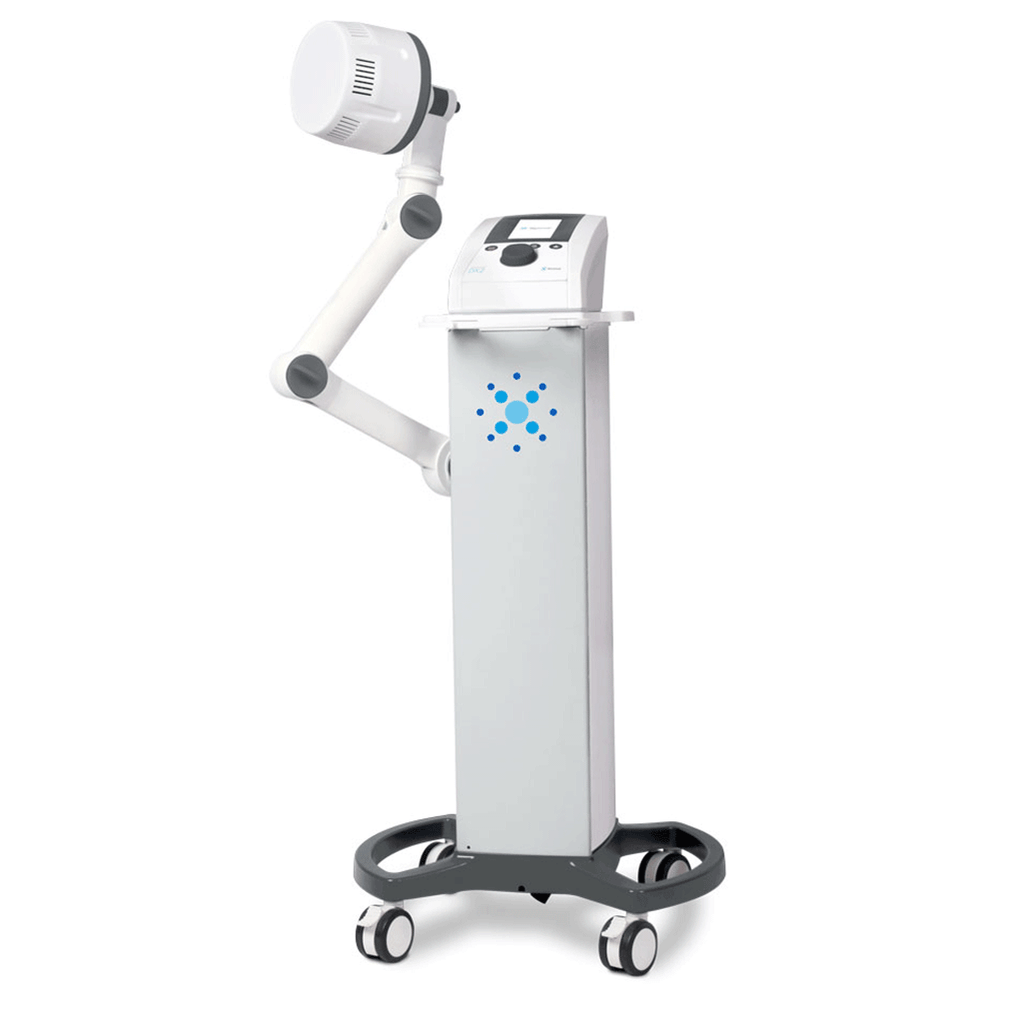

TheraTouch® DX2 Shortwave Diathermy
Deep Heat Therapy with Shortwave Diathermy
TheraTouch DX2 introduces several new advancements in safety, convenience, and efficiency compared to other shortwave diathermy devices.
PRODUCT HIGHLIGHTS
• Anatomical Treatment Guide for easy monode placement
• Save up to 99 user-defined favorites
• 9 evidence-based Quick Links by Indication
• Qualitative Thermal Dosimetry with six settings included
• Easy to use, touch-screen interface
• USB port for easy software upgrades
• Dual treatment indicators on unit and inductive drum
• 3 year warranty

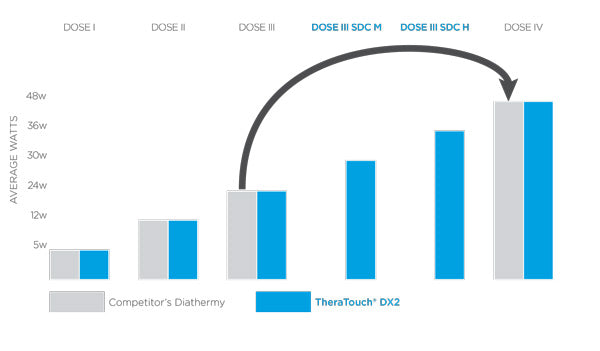

SCIENTIFIC DOSAGE CONTROL
Scientific Dosage Control (SDC) allows for two additional dosimetry settings within Dose III provide more options for therapeutic heating within patient comfort tolerances.
DOSE I - Subthermal
DOSE II - Mild Heat
DOSE III - Low Heat
DOSE III SDC M - Moderate Heat
DOSE III SDC H - High Heat
DOSE IV - Vigorous Heat
High Efficiency Auto-Tuning (H.E.A.T.)
Resonant auto-tuning technology continually measures and adjusts to changes in the patient's impedance to provide maximum energy transmission, resulting in faster heating and shorter treatment times.
Microcirculation Indication
The Microcirculation Indication is an exclusive parameter found in the DX2's Quick Link library to enhance tissue healing, based on studies of subthermal pulsed shortwave diathermy.*
-
Anatomical Treatment Guide for easy monode placement
-
Save up to 99 user-defined favorites
-
9 evidence-based Quick Links by Indication
-
Qualitative Thermal Dosimetry with six settings included
-
Easy to use, touch-screen interface
-
USB port for easy software upgrades
-
Dual treatment indicators on unit and inductive drum
-
3 year warranty
Part Numbers:
|
TheraTouch® DX2 Shortwave Diathermy |
DQSWD2 |
|
TheraTouch® DX2 Mono Drum |
DQSWD2-D |
|
TheraTouch® DX2 Coaxial Cable |
DQSWD2-DC |
|
TheraTouch® DX2 Mechanical Arm |
DQSWD2-MA |
Technical Specifications
Continuous Mode Output 100W
Average Power at 50Ω
Pulsed Mode Output 200W
Peak Power at 50Ω
Power 100-240 V ~; 50/60 Hz
Output Frequency 27.12 MHz ± 0.6%
Power Increment Settings .5 W
Pulse Width 20 - 400 μsec in 20 μsec increments
Pulse Frequencies 10 - 800 Hz in 10 Hz increments
Treatment Duration 1 - 30 min in 1 min increments
Electrical Class CLASS I
Electrical Type TYPE BF
Regulatory Risk
Class IIb according to MDD 93/42/EEC
Literature
TheraTouch® DX2 Shortwave Diathermy Brochure
TheraTouch® DX2 Shortwave Diathermy Operation Manual
