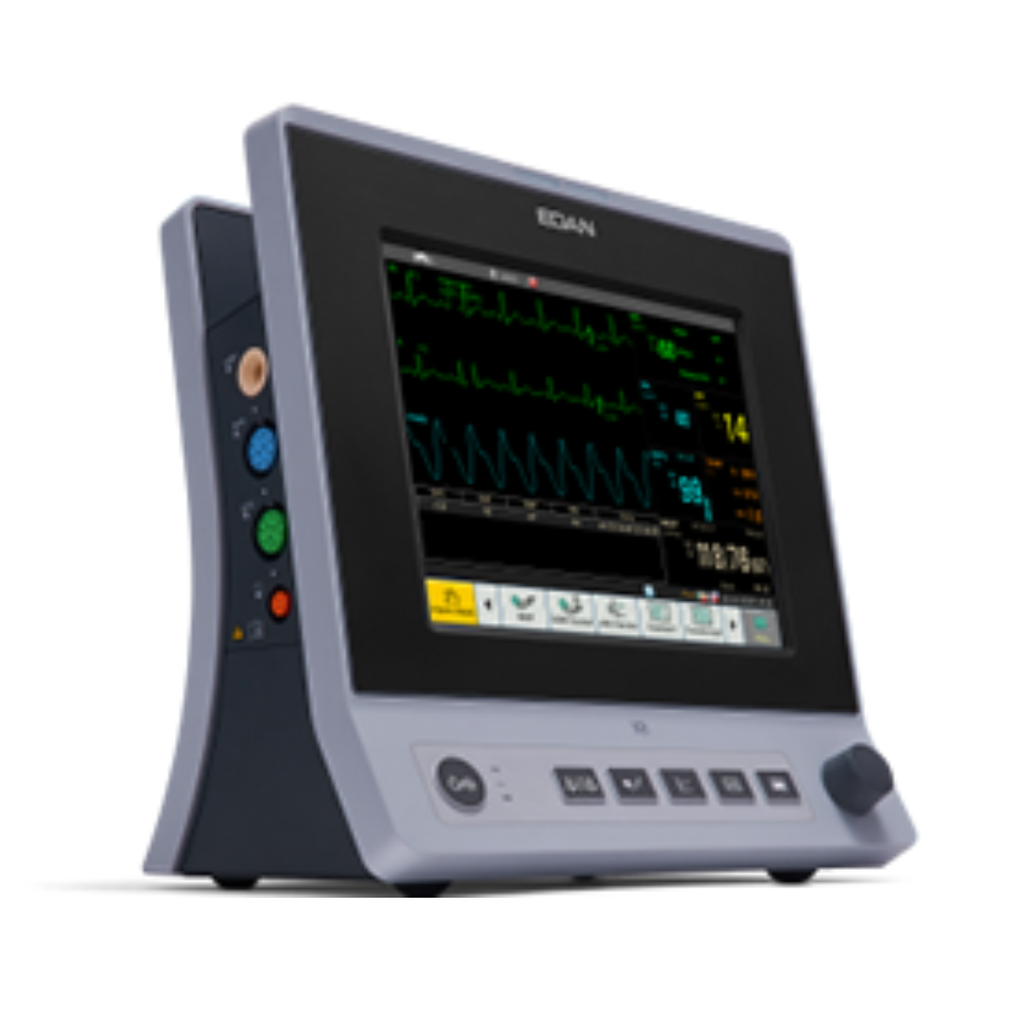

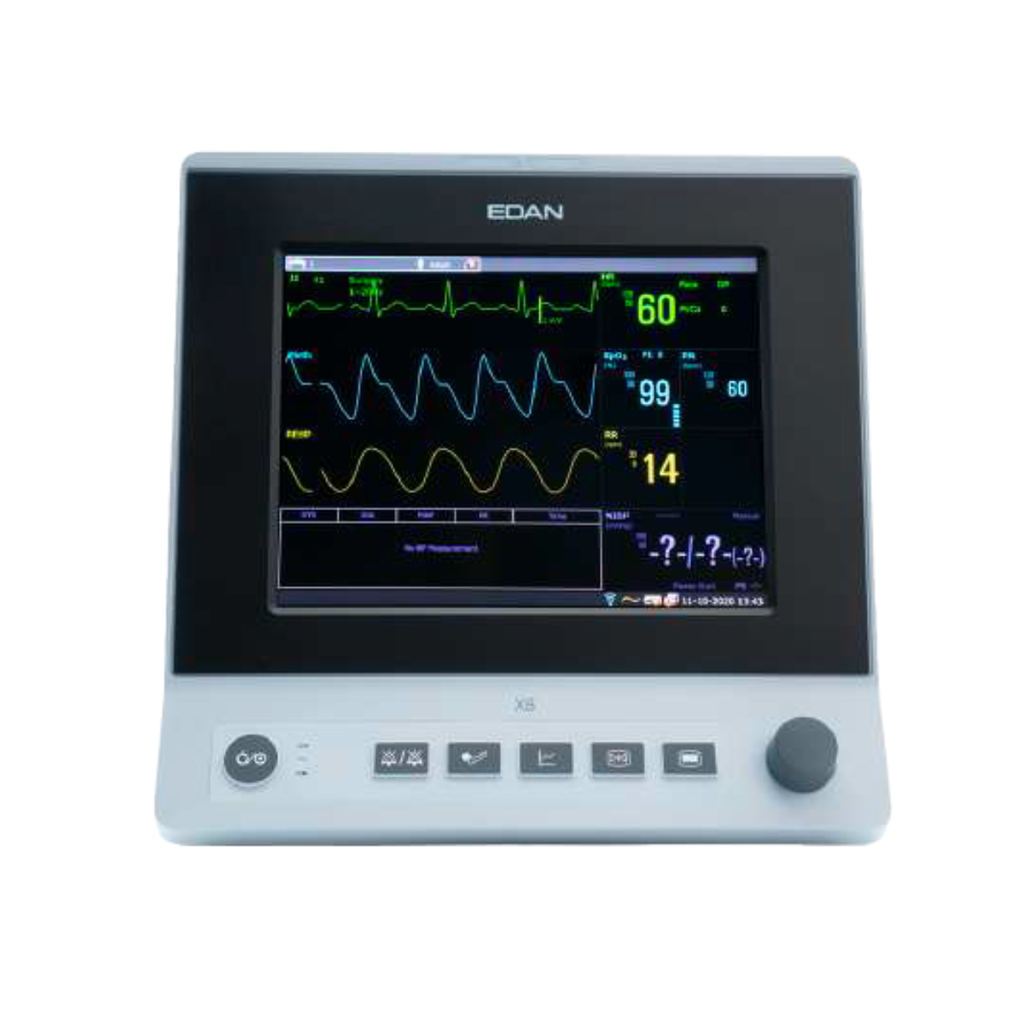

X8 Patient monitor with 8'' touch screen and Wi-Fi. Standard configuration 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR, HR and internal memory for previous data review. Upgradable to G2 O2.
In excellent condition with no functional defects. Only been used for testing or demo purposes. Includes 1-Year Manufacturer Warranty. Includes All Accessories.
Standard Parameters: 3/5 lead ECG, HR, RESP, SpO2, NIBP, PR, 2-Temp
Standard Features: Touch screen, WiFi, USB, VGA Output, 8GB internal memory, IBP slots
Optional Configurations & Features: 6/12 lead ECG, G2 CO2, Cardiac Output (X12), Thermal Recorder, Nurse Call (with CMS), Defibrillator Synchronization
Advanced Technologies
- 8GB Internal Memory
- 240 Hours of trend graph & table review
- Built-in WIFI
- Opional 6-12 ECG*
- Arrhytmia & S-T Analysis
- 1200 NIBP measurements
- Comprehensive connectivity options for easy data transfer
- G2 CO2 water traps can be used with male luer-lock cannula* Optional G2 CO2
Expert Design
- Ultraslim 12-In Screen
- High-Resolution Touch Screen
- Intuitive Shortcut Menu
- Built-In Carry Handle
- Cable Receiving Design
Proprietary Algorithms & Technologies
G2 CO2 (sidestream)
- Superior water trap design for accurate monitoring
-
iCARB™ algorithm with intelligent CO2 pseudo wave identification technology
-
Sampling rate as low as 50ml/min
ECG
- 12-lead ST analysis optional with additional internal module upgrade
- Automatic lead type detection
- Industry leading iSEAP™ algorithm with auto-detection of 33 types of arrhythmias
- SEMIP® algorithm with 208 ECG findings over age/gender diversities
NIBP
- Dual dust filter design means no blockage inside and provides accurate NIBP reading
- Unique cleaning mode for routine maintenance
- iCUFS™ algorithm with smart deflation technology
SpO2
- iMAT algorithm with motion resistance and low perfusion resistance performance
- Reference reading of Perfusion Index (PI) from
- 0 to 10 according to perfusion changes
- Simultaneous measurements of SpO2 and NIBP of the same limb
