EDAN Acclarix AX2 Compact Ultrasound System (One Transducer Port)

EDAN Acclarix AX2 Compact Ultrasound System (One Transducer Port)

Name: EDAN Acclarix AX2 Compact Ultrasound System (One Transducer Port)
Brand: EDAN
Price: 10500.0 USD
Availability: InStock

EDAN

Transducer (See Images): Stand Alone Unit (No Probe)

Add-On: No Add-Ons

Variant

Price:

$10,500

Shipping calculated at checkout

Stock:

Only 20 units left

Quantity:

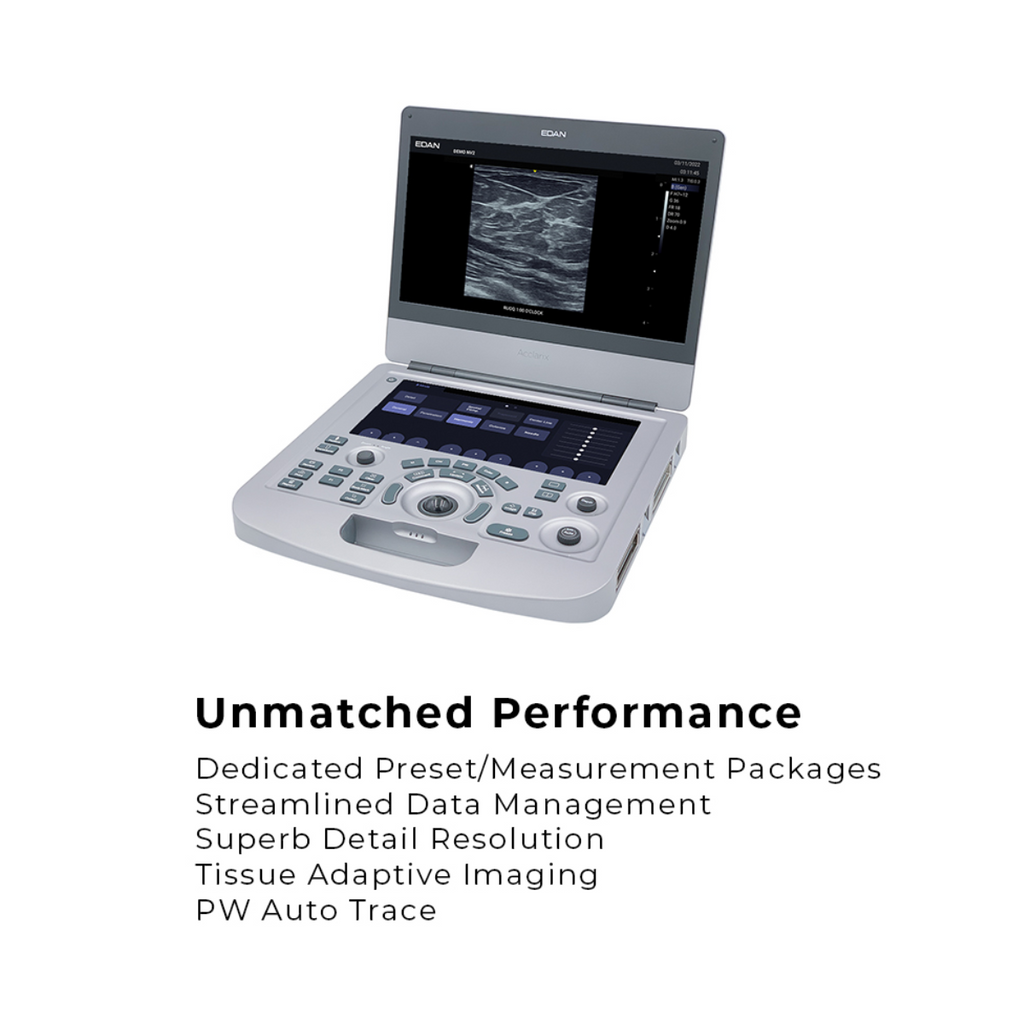

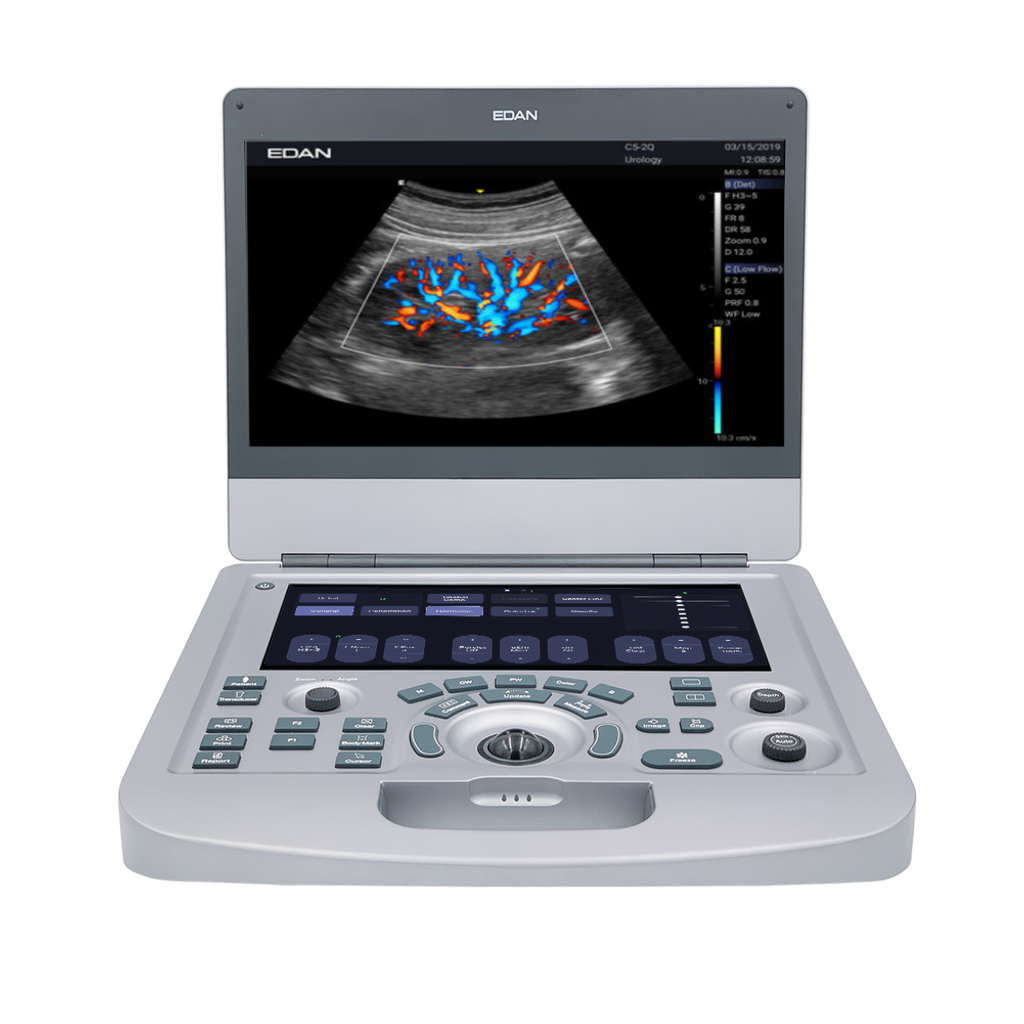

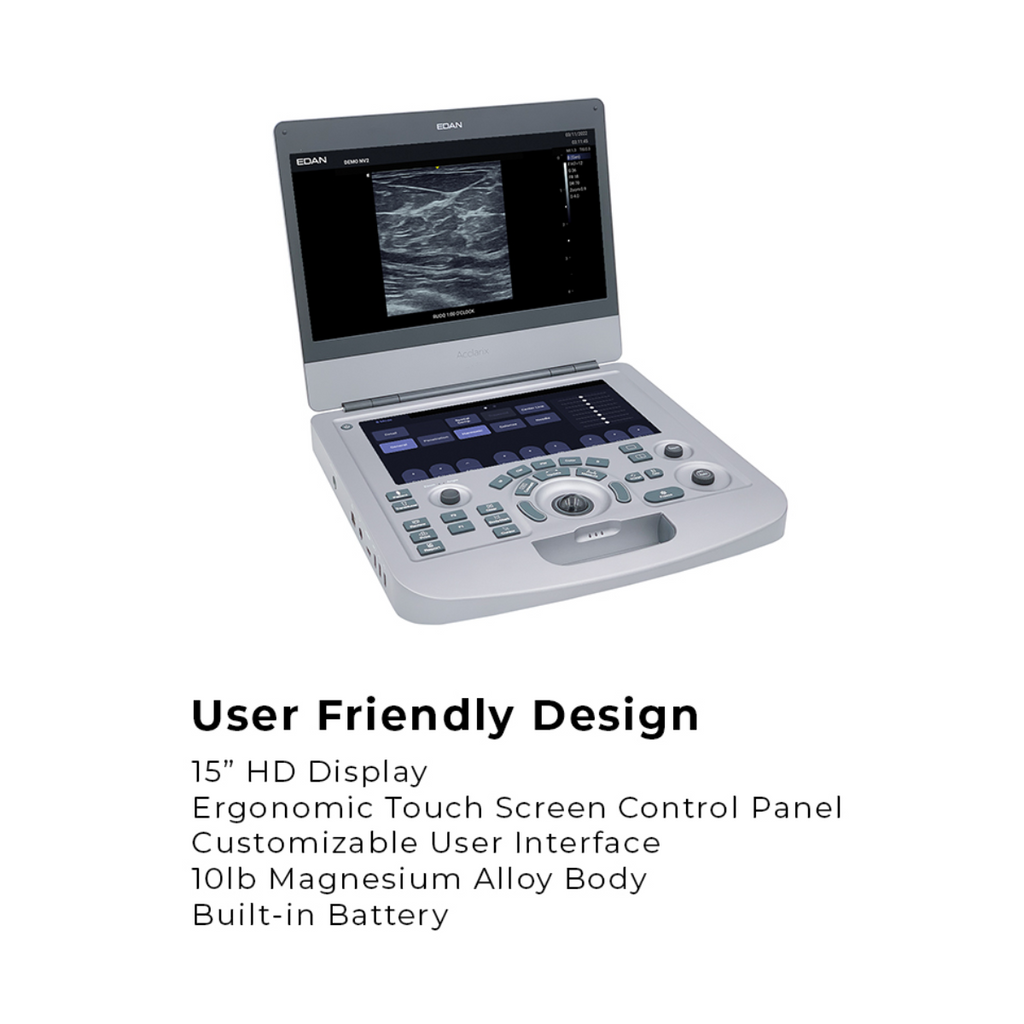

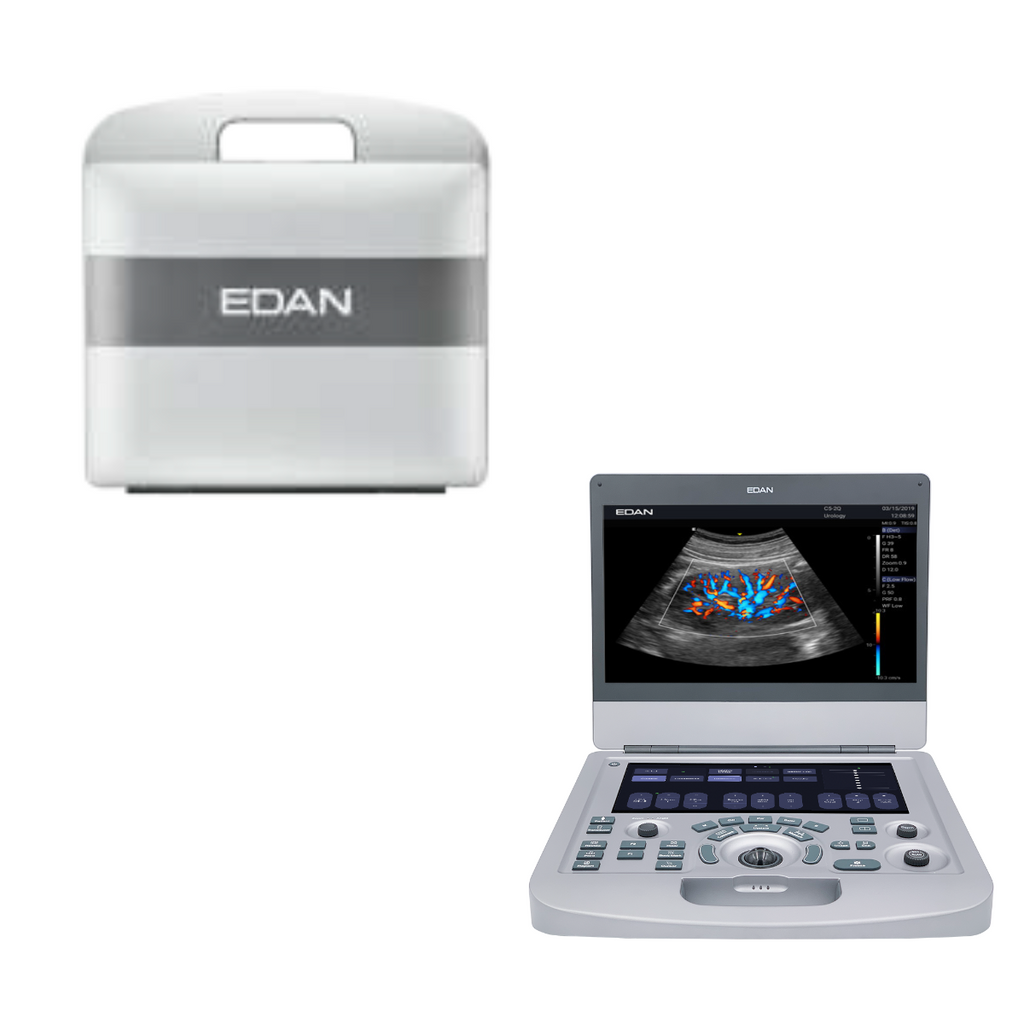

Acclarix AX2 Compact Ultrasound System (Must Add a Transducer Option, no transducer is included)

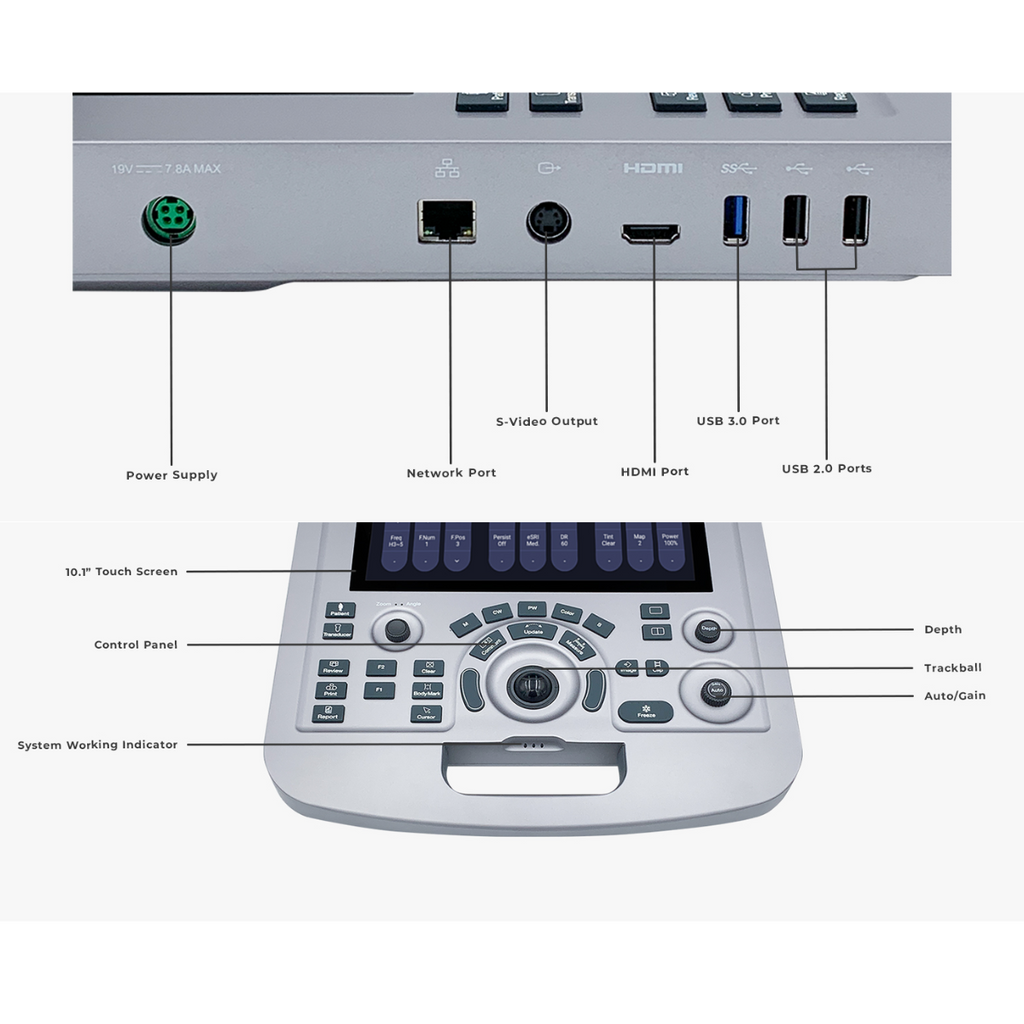

- Comes with One Transducer Port
- Compact and ultra light design, 10lbs with built-in carrying handle
- 15'' HD monitor with 10'' touch screen for customizable workflow
- Built-in battery for 2 hour continuous use
- 120G SSD, high capacity storage with USB transfer

PW auto trace — One key in automatic measurement
eTouch — Efficient ‘Swipe’ gesture control

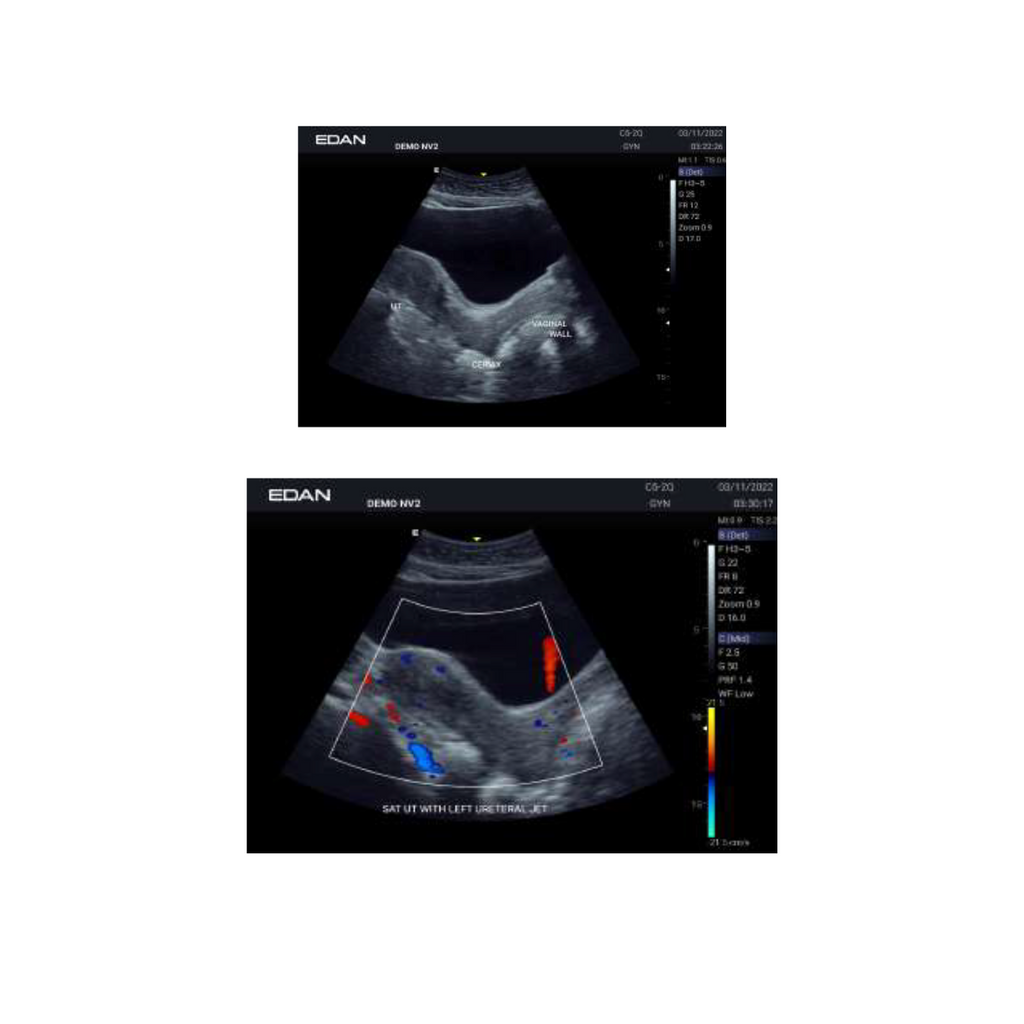

Imaging Modes:

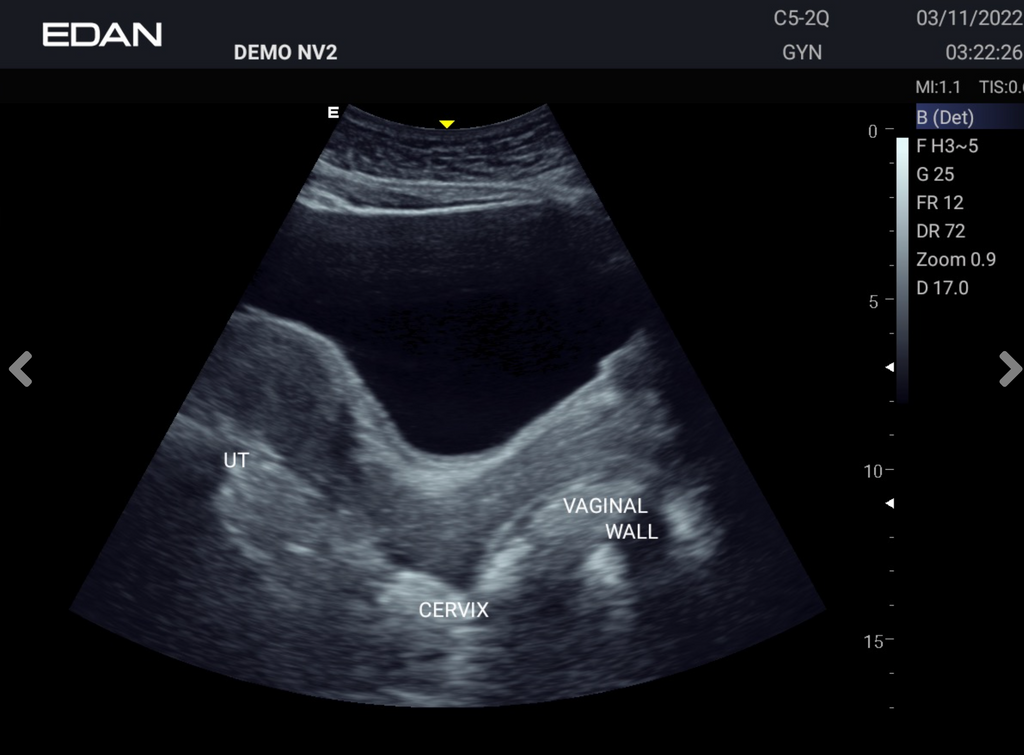

B mode
M mode

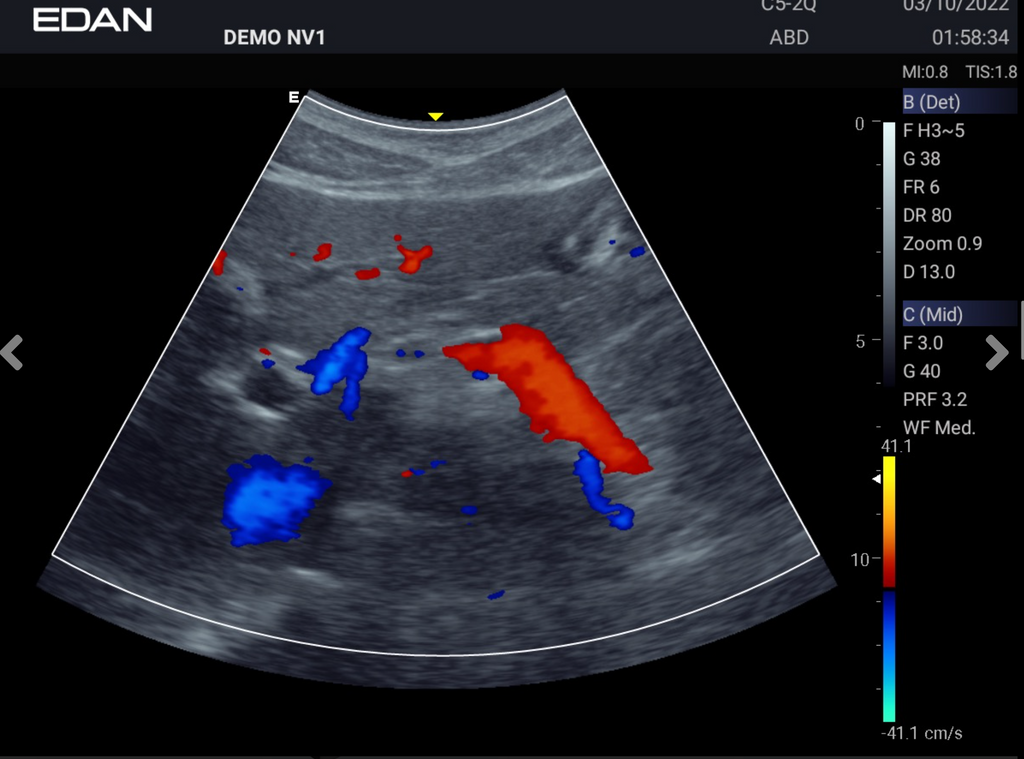

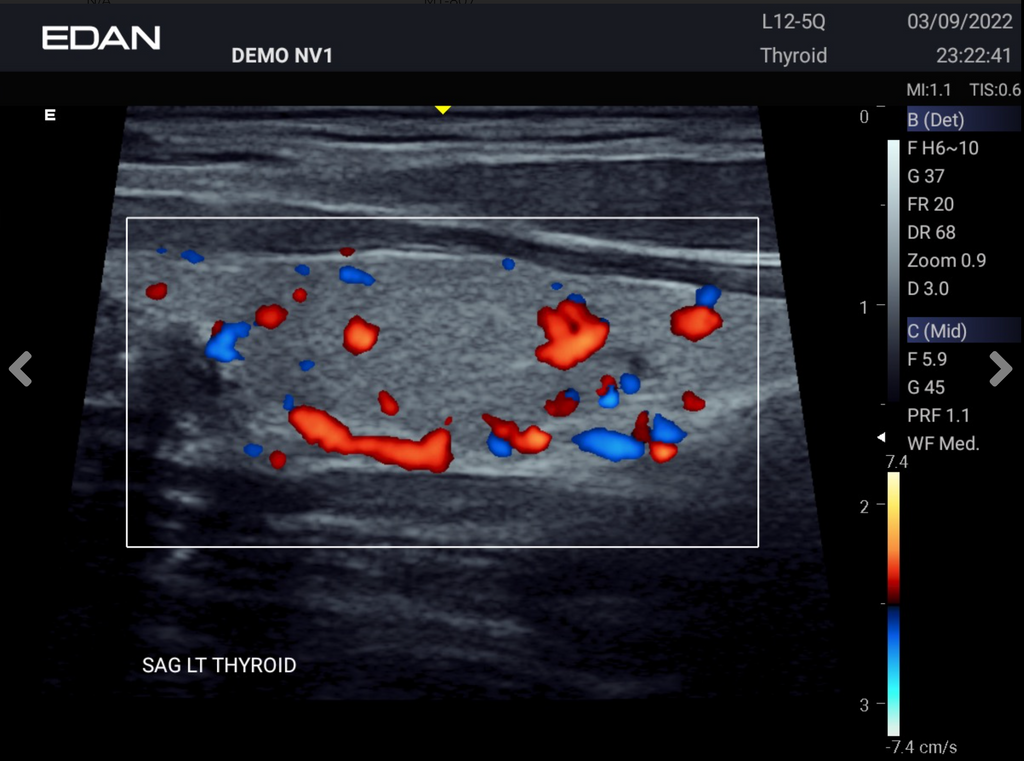

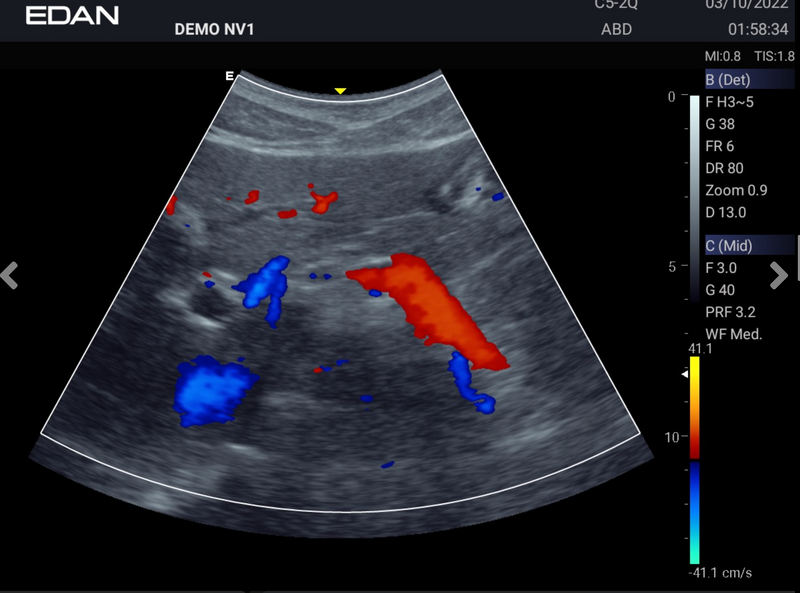

Color Doppler
PDI/DPDI
PW Doppler
CW Doppler
Needle Guide Visualization

Applications:

Abdomen, Gynecology, Obstetrics, Fetal Echo, Cardiology, Small Parts, Urology, Vascular, Pediatric, Musculoskeletal

Features:

3D Imaging
Ultra-light and compact
Superb detail resolution
Customizable user interface
Dual transducer design (AX3)
Tissue Adaptive Imaging (TAI)
Dual battery design for long usage (2+ hours)
Dedicated presets and measurement packages
JPG, PDF, AVI, and BMP file export
Multiple data managing methods: DICOM & Network

Includes:

Rechargeable Lithium-Ion Battery (14.8V, 5000mAh)

AC-DC adapter

Power Cord (USA Standard)

Flash Disk (Netac,4G, USB2.0 Protocol)

Ultrasound Gel(250g)

Acclarix AX2/AX3 Series Advanced User Manual

Acclarix AX2/AX3 Series Basic User Manual

Add-Ons

	Printers
UP-X898MD	SONY UP-X898MD, S-Video/USB interface. Black and white video graphic printer
UP-D25MD	Sony UP-25MD,USB interface. Color and video printer

MT-808

MT-808 Trolley for AX2/AX3 series (Height adjustable)

01.56.466572

Luxurious carrying bag

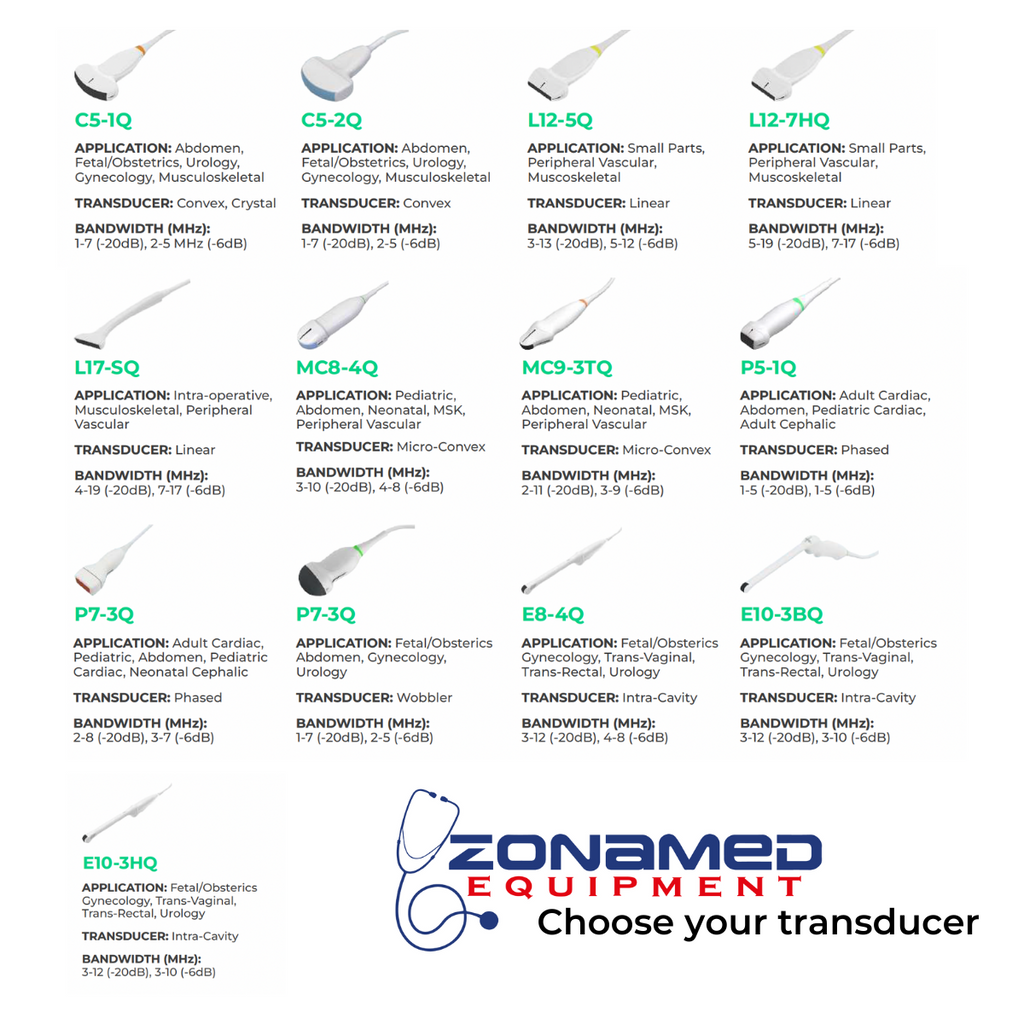

Transducers

C5-1Q	AX2/AX3 Single Crystal Convex Probe C5-1Q Applications used for: Aebdomen, Fetal / Obstetrics, Urology, Gynecology, Musculoskeletal
C5-2Q	C5-2Q Acclarix AX Series Convex Array Transducer: 60mm, 128 Elements , 1.5 - 6.5 MHz (-20dB), 2-5 MHz (-6dB), 40-300mm depth, Abdomen, OB, Gynecology, Nerve.
C6-2MQ	C6-2MQ Acclarix AX2 and AX3 Mechanical Convex Array Transducer: 40mm, 128 Elements, 1.5-7 MHz (-20dB), 2-5 MHz (-6dB), Fetal Echo，OB,OB-1
E10-3BQ	AX2/AX3 Endocavity array transducer: E10-3BQ
E8-4Q	Acclarix Endocavity array transducer: 10mm, 128 elements, 3.5-12MHz, 4-8MHz, 15-110mm depth, Fetal / OBGYN, Trans-Vaginal, Trans-Rectal, Urology
L12-5Q	Acclarix Linear array transducer: 38mm, 128 elements, 3.5-12.5 MHz (-20dB) 5-12MHz (-6dB), 10-110mm depth, Small Parts, Peripheral Vascular, Muscoskeletal
L17-7HQ	L17-7HQ Acclarix AX2, AX3 Linear Array Transducer: 38mm, 128 Elements, 5-19 MHz (-20dB), 7-17MHz (-6dB), Small parts,MSK, Nerve,Superficial, Vascular.
L17-7SQ	L17-7SQ Acclarix AX2 and AX3 Linear Array Transducer: 26mm, 192 Elements, 4.5-18.5 MHz (-20dB), 7-17MHz (-6dB), 10-110mm depth, MSK, Nerve, Vascular, SMP, Intra-operation, Superficial.
MC8-4Q	MC8-4Q Acclarix AX2 and AX3 Micro Convex Transducer: 15 mm, 128 Elements, 3 - 10MHz (-20dB), 4-8MHz(-6dB), Neonate, Pediatric, Nerve, Vascular.
MC9-3TQ	MC9-3TQ Acclarix AX2 and AX3 Micro Convex Transducer: 10 mm, 128 Elements, 2 - 11MHz (-20dB), 3-9MHz(-6dB), Neonate, Pediatric, Nerve, Vascular.
P5-1Q	EdanUSA Acclarix AX2/AX3 Phased array transducer:16mm, 64 elements, 1-4.5 MHz (-20dB), 1-5 MHx (-6dB), depth 40-300mm, Adult Cardiac, Abdomen, Pediatric Cardiac, Adult Cephalic
P7-3Q	EdanUSA Acclarix AX2/AX3 Phased array transducer:16mm, 64 elements, 1-4.5 MHz (-20dB), 1-5 MHx (-6dB), depth 40-300mm, Adult Cardiac, Abdomen, Pediatric Cardiac, Adult Cephalic
