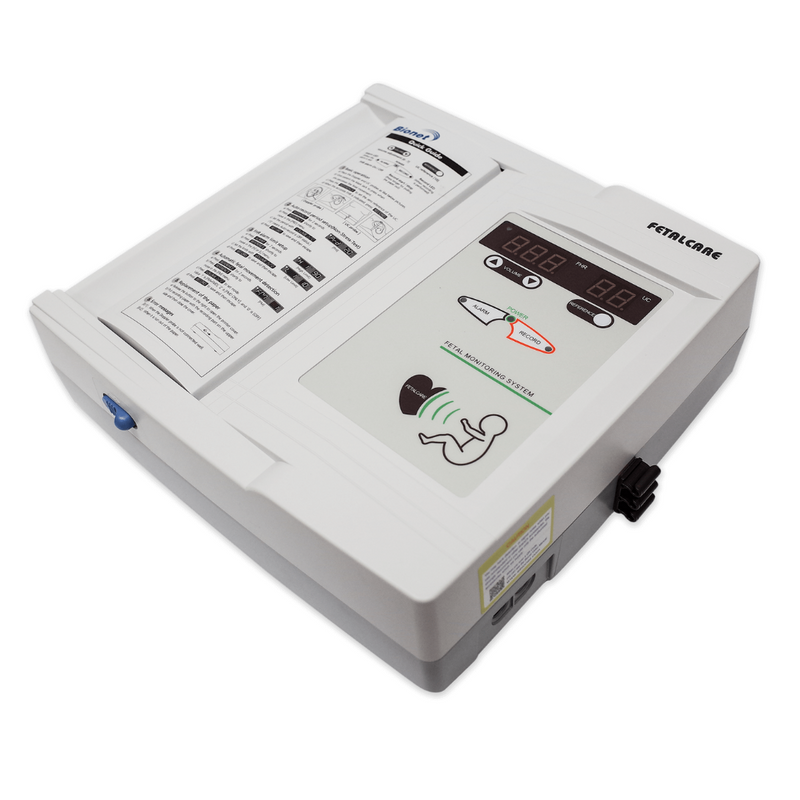

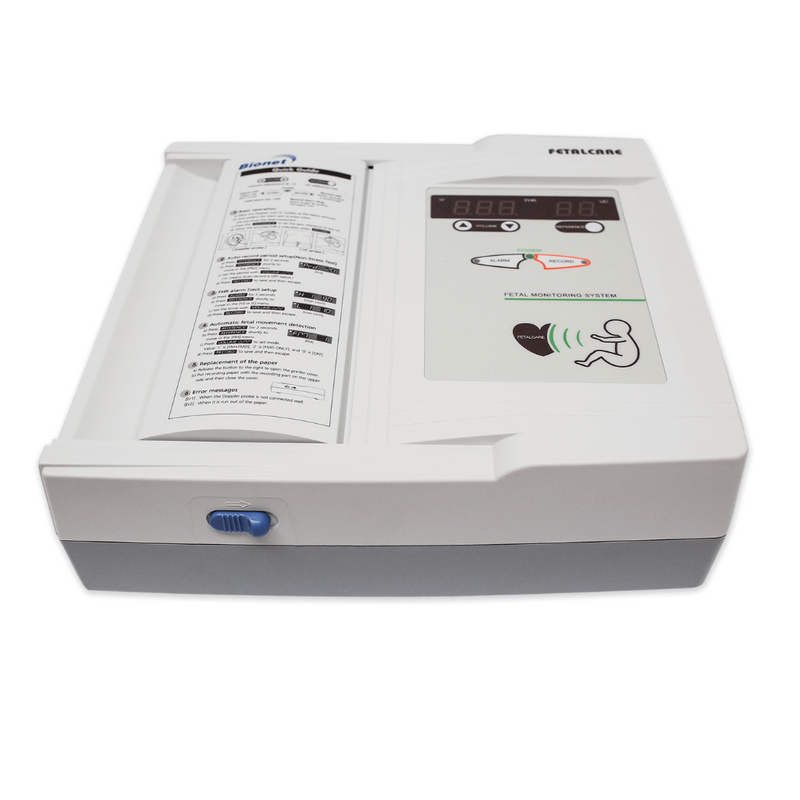

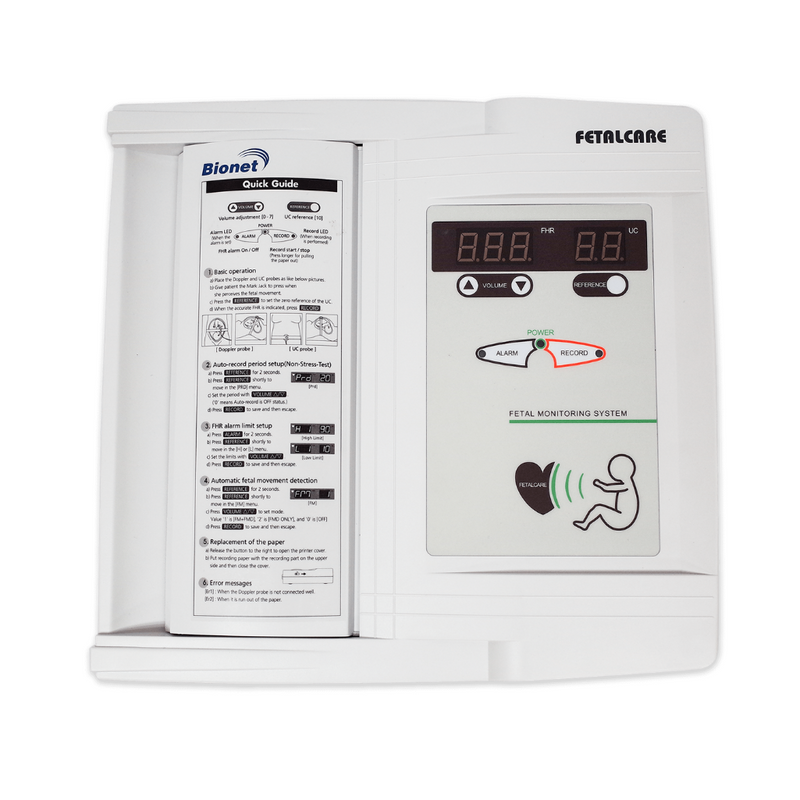

FC700 Antepartum Fetal Monitor For Single Fetus
Combining high functionality and user-friendliness, the FC700 fetal monitor allows for comprehensive assessment of the well-being of a single fetus.
- Accurate FHR Detection
- Distinctive Display of FHR, UC
- Automatic Fetal Movement Detection
- High Sensitivity (1 MHz)
- Alarm on Abnormal FHR
- A4-Size Wide Chart Paper
- Intuitive User Interface
- Easy to Upgrade
- PC Interface Through RS-232C
Cost-Effective Single Fetus Monitor. Combining High Functionality and User Friendliness, The
FC 700 Allows for Comprehensive Assessment of the Well Being of a Single Fetus.
FC 700MainUnit, USProbe, TOCOProbe, Event Marker Jack, Ultrasound Gel, Probe
Belt (x2), Paper (x2), Power Adaptor &Hospital GradePower Cord, Operation Manual and 3 Year Warranty Card.
Combining high functionality and user-friendliness, the FC700 fetal monitor allows for a comprehensive assessment of the well-being of a single fetus. The advanced digital signal processing capabilities and ultrasound technology optimize the acquisition of the fetal heart rate during even the most adverse situations. A4-size report improves readability of the fetal heart rate (FHR) and uterine contraction (UC) trend.
The FC700 is the ideal fetal monitor for all clinical settings from physicians’ offices to labor and delivery suites.
- Accurate FHR detection
- High sensitivity (1 MHz)
- Automatic fetal movement detection
- A4-size wide chart paper
- Uses inexpensive fax paper
- Intuitive user interface
- Easy to upgrade
- PC interface through RS-232C
Defining a new standard for routine antepartum monitoring.

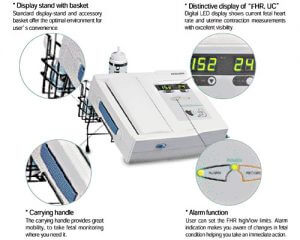

Distinctive Display of FHR, UC
Digital LED display shows current fetal heart rate and uterine contraction measurements with excellent visibility.
The carrying handle provides great mobility enabling you to take fetal monitoring where you need it.
User can set the FHR high/low limits. Alarm indication makes you aware of changes in fetal condition helping you take immediate action.
Superior Sensitivity – 1 Mhz Ultrasound Doppler
The FC700 provides accurate fetal heart rate and uterine contraction measurement information on fetal well-being during labor and in the months before. Highly advanced accuracy backed with 1 MHz ultrasound sensitivity helps obstetricians interpret the fetal condition accurately without concern for the data.
Fetal Movement Detection on A4-Size Paper
Designed to detect gross fetal body movements such as flexion and extension of limbs or rolling over. FC700 makes it easy to document movements automatically on the recorded tracings. A4-size chart paper shows FHR and UC variation more distinctively for easier interpretation. The printout is fully annotated with alarm status, paper speed, auto print period, and time/date-stamped information.
Simple operation eliminates the need for complicated training and ensures trouble-free performance.
Save Money by Using Normal Fax Paper
Standard fax paper can be used in FC700, due to integrated grid-function.
Automatic Record Function
You can set the automatic record period from 10 minutes to 60 minutes in 10-minute intervals for the non-stress test. The non-stress test is an important examination in prognosticating fetuses. Conveniently this function makes manual tasks automatic, providing the highest quality of care at all times.
The FC700 firmware is upgradeable by the user. You can always find the latest firmware at www.BionetUS.com.

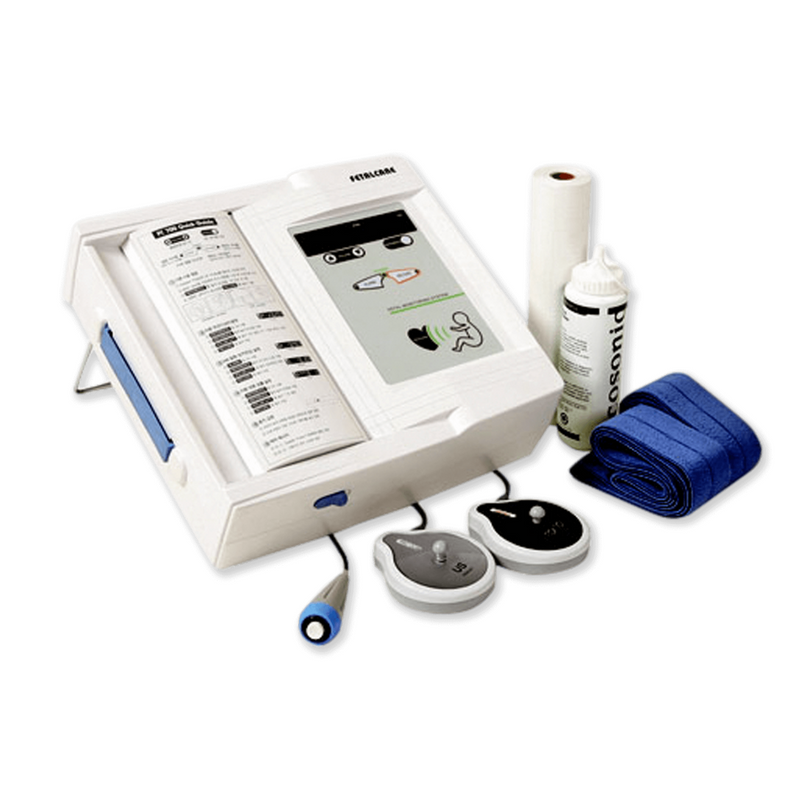

FC 700 Main Unit, US Probe, TOCO Probe, Event Marker Jack, Ultrasound Gel, Probe Belt (x2), Paper (x2), Power Adaptor & Hospital Grade Power Cord, Operation Manual, and 3-Year Warranty Card.
* Specifications can be changed without prior notification.
Zona Med Equipment: FC700 Fetal monitor Brochure
Zona Med Equipment: FC700 Fetal Monitor Manual
This product ships directly from the manufacturer, subject to the manufacturer's lead time and availability, once the order is confirmed we will confirm the lead time.
