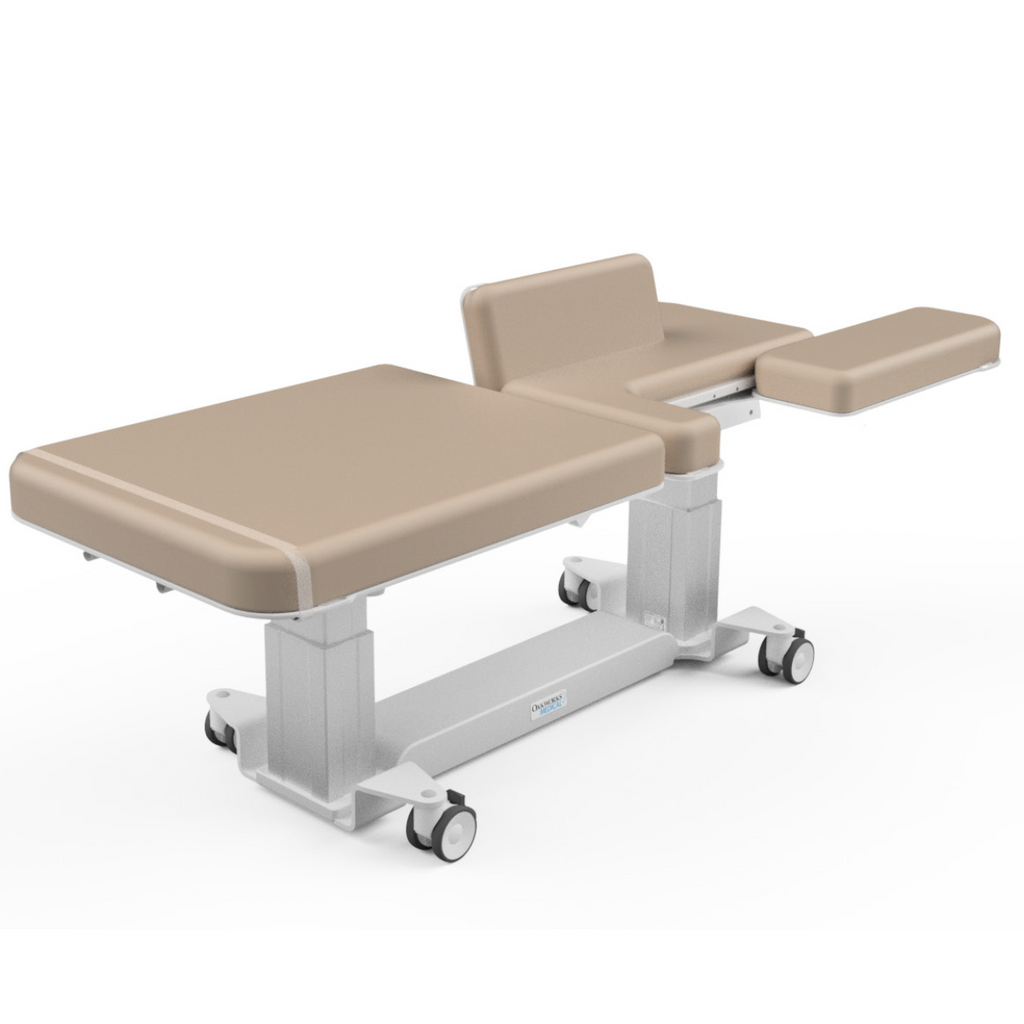

Oakworks Echocardiography 2-Section Advantage Line Ultrasound Table 84773

Roll over image to zoom in

Oakworks Echocardiography 2-Section Advantage Line Ultrasound Table 84773

Name: Oakworks Echocardiography 2-Section Advantage Line Ultrasound Table 84773
Brand: Oakworks Medical
Price: 6550.0 USD
Availability: InStock

Oakworks Medical

Brand New w/Color of your choice

Includes Hand Control

Model: #84773

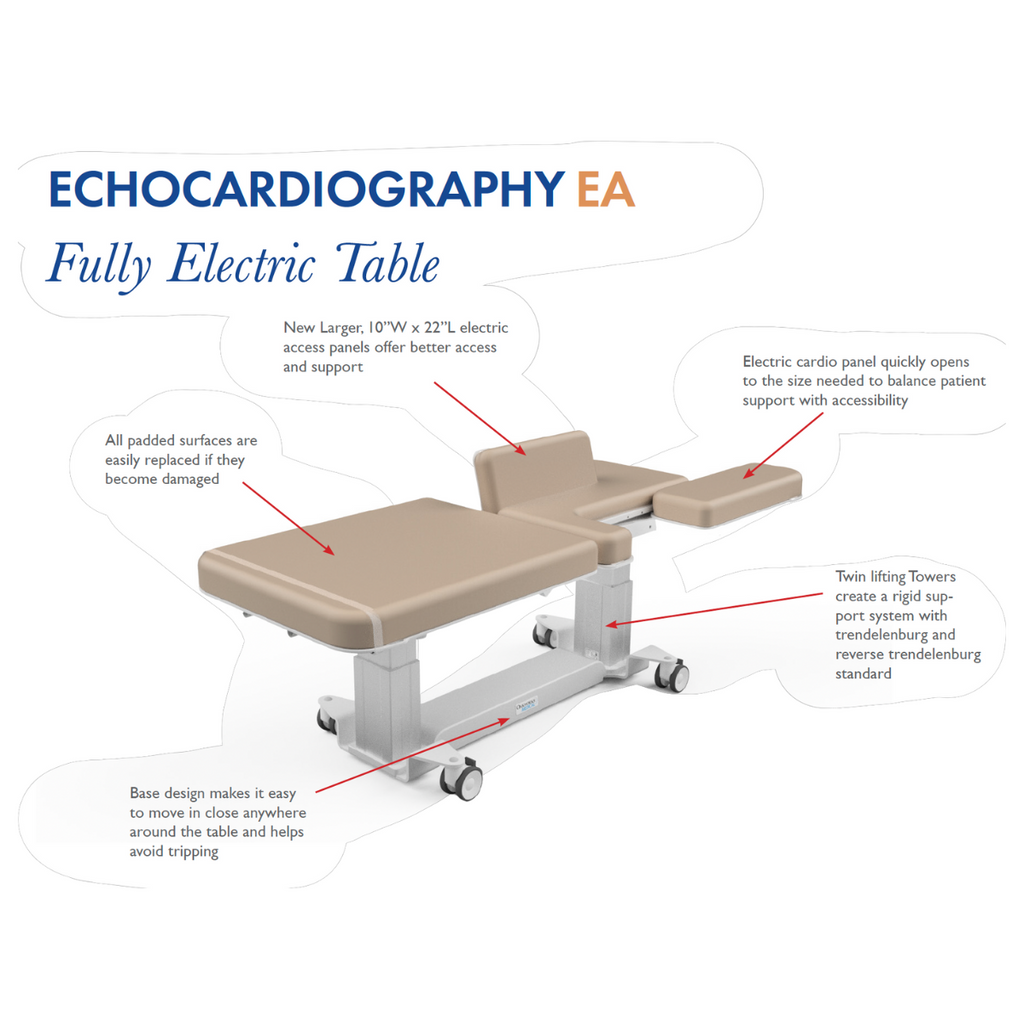

2 Section Top - 30 in. (76 cm) wide x 72 in. (183 cm) long
Backrest - 34 in. (86 cm) long
Seat - 38 in. (97cm) long
Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°

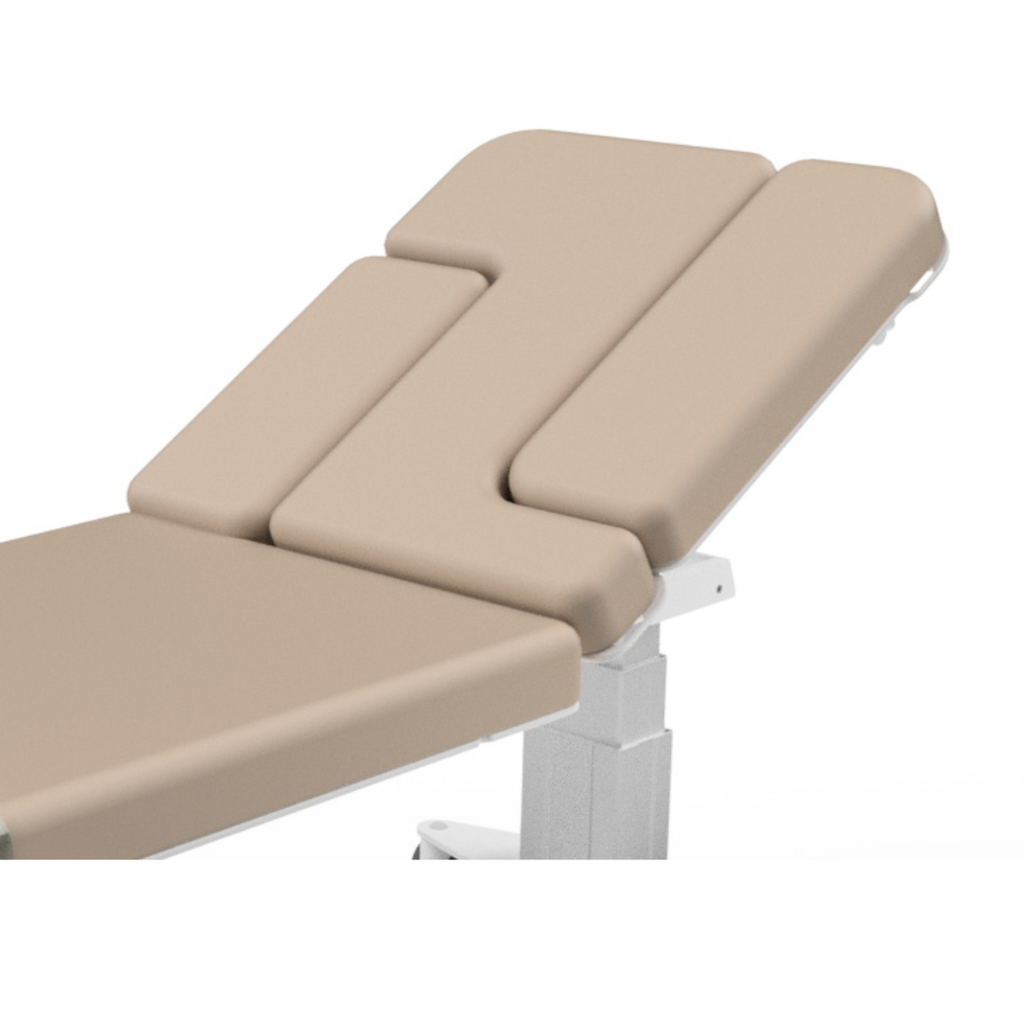

Motion 3 - Electric Fowler Backrest 0-75°

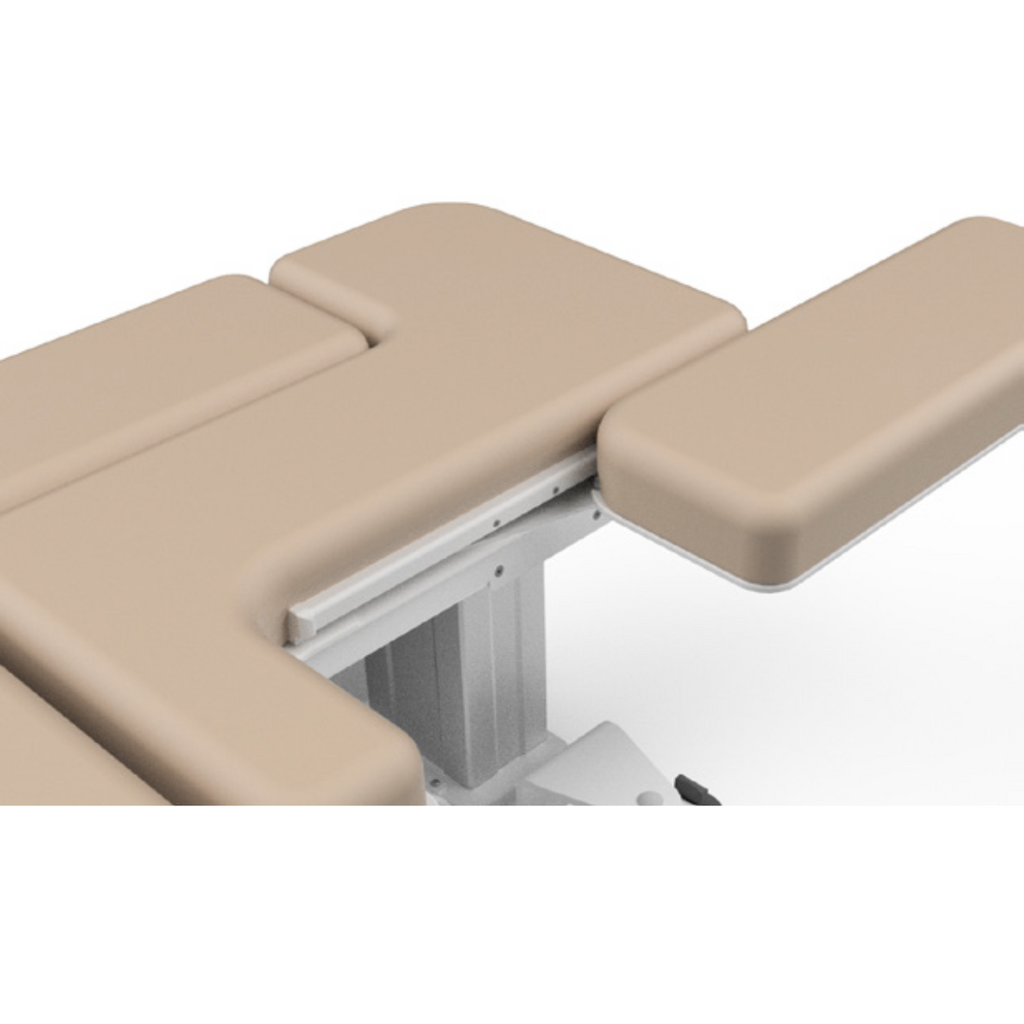

Motion 4 - Electric Sliding Cardio Panel opens 15 in. (38cm)

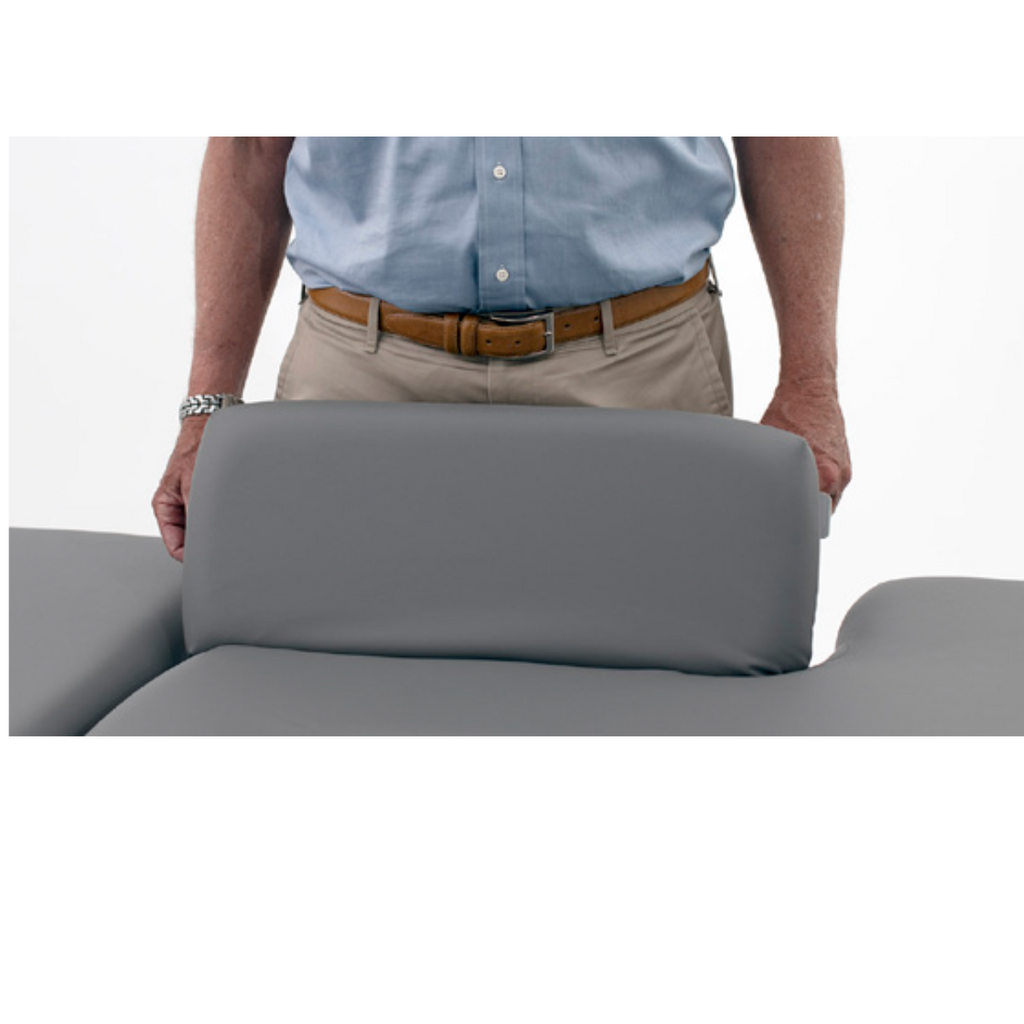

Motion 5 - Access/Back support: Electric 10” wide (25cm) x 22” long (56cm) 0-75° Access/Back support for patient positioning (right side)

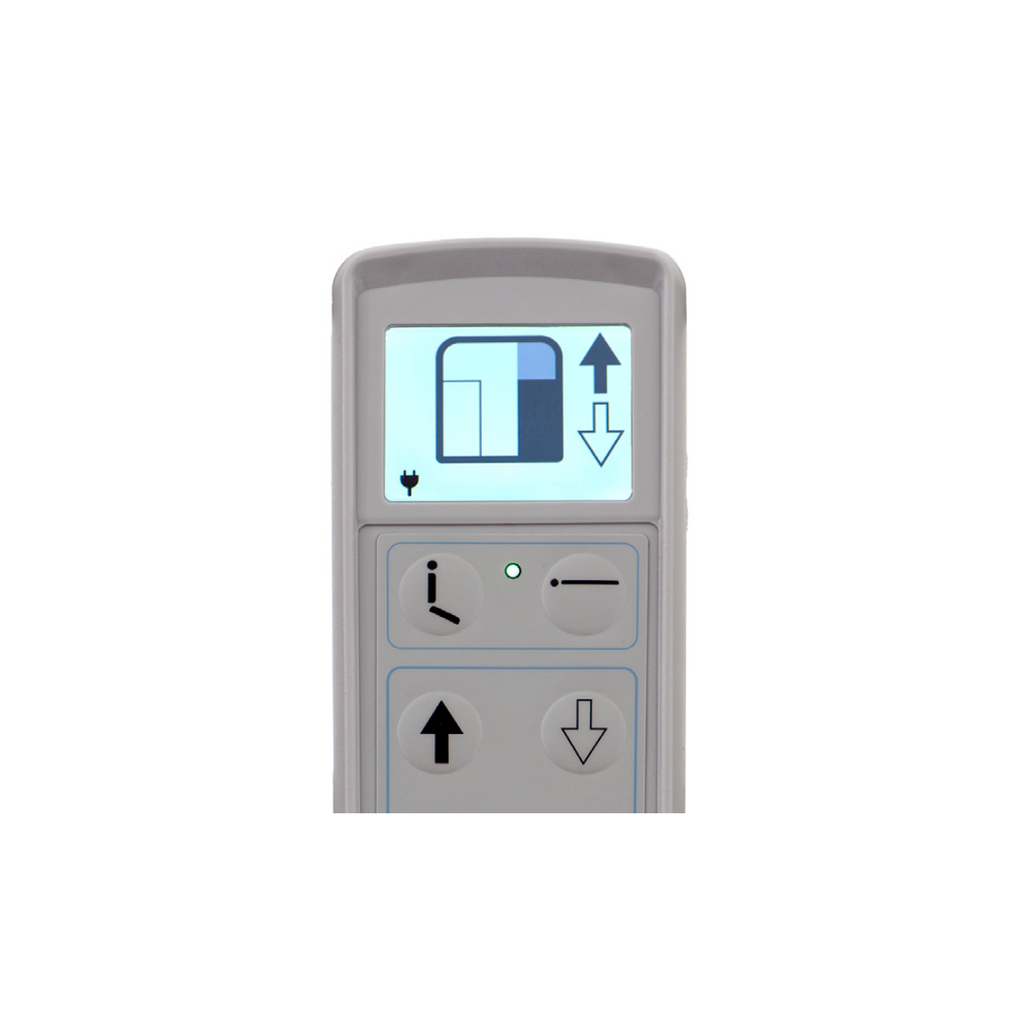

Controls - Multi-function hand control with presets controlling multiple movements
Weight Capacity - 550lb (250kg)
Product Weight - 359lb (163kg)

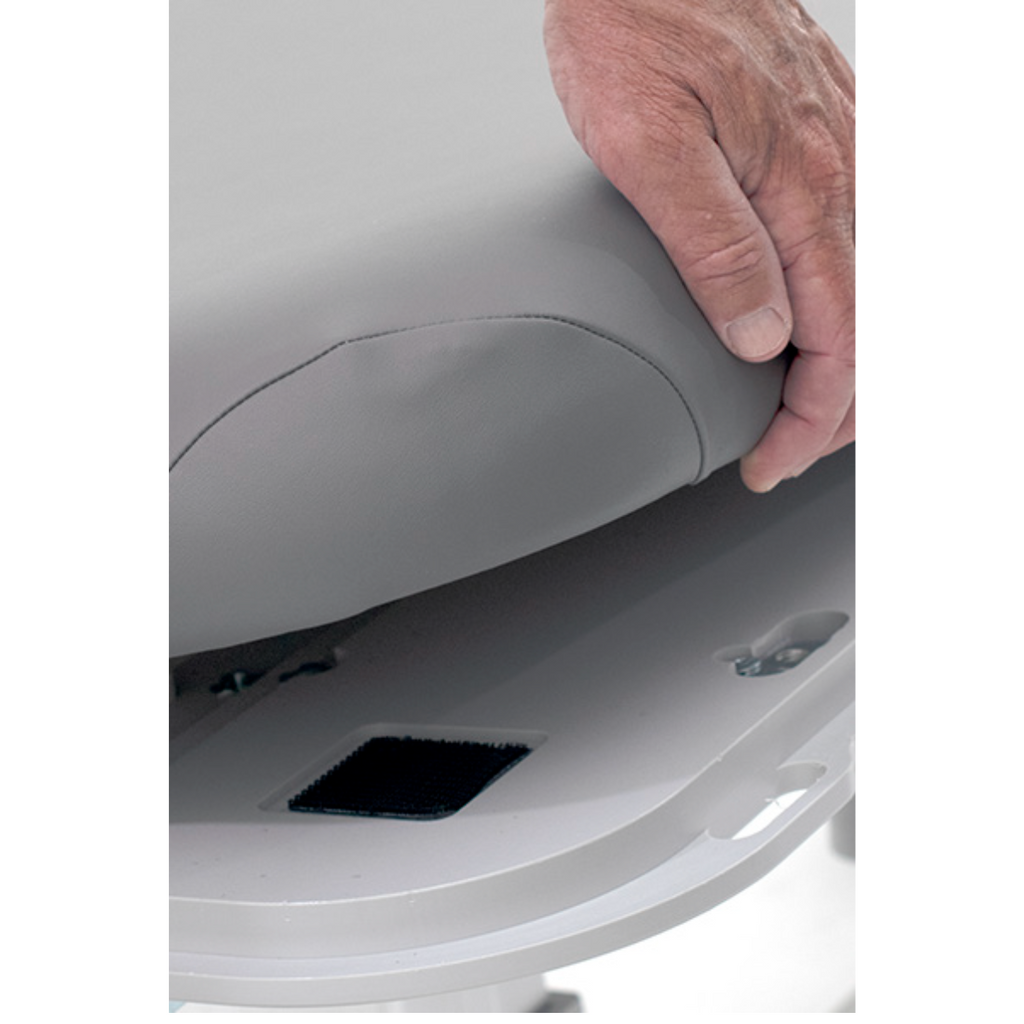

Removable Padding System - 3 in. (8cm) Comfort Foam ™
Included Features - 4 in. (10cm) locking casters, Electric access back support, Electric sliding cardio panel, Paper roll holder
Warranty - 3 years parts, 2 years labor
Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate

Recommended Accessories (Add-Ons) Contact us for Quote

Stools - Durable & comfortable, support 300 lbs., simple pneumatic height adjustments.
Detatchable Arm Board - Use w/ T-Rail adapter 5 in. (13cm) wide x 20.5 in. (52cm) long
T-Rail Adapter - 8 in. (20cm) long. Attached to the backrest for use with USA format T-rail attachable accessories
Table Extender - 24 in. (61cm) wide x 12 in. (30cm) long
QuickLock™ Head Rest (black) & AeroCel Pad - Comfortable, adjustable prone or supine support

Technical Specifications

FEATURES
2 Section Top	30” (76cm) wide x 72” (183cm) long
Backrest	34” (86cm) long
Seat	38” (97cm) long
Motion 1	Electric Height Range 19” - 33” (48-83cm)
Motion 2	Electric Trendelenburg/Reverse Tilt ±18º
Motion 3	Electric Fowler Backrest 0-75°
Motion 4	Electric Sliding Cardio Panel opens 15” (38cm)
Motion 5	Electric Access Panel opens10” wide (25cm) x 22” long (56cm)
Hand Control	All electric motions
Weight Capacity	550 lb (250kg)
Product Weight	359 lb (163kg)
Padding	3” (8cm) Comfort Foam™
Fabric	Premium, PVC free TerraTouch™
Included Features	4” (10cm) locking casters, Powered access back support, electric sliding cardio panel,Paper roll holder
Warranty	3 years parts, 2 years labor
Safety Listings	FDA listed, CE marked, cETLus listed, CB Certificate

Options

If you'd like to get more options, please contact us at 954-994-2526 to request a quote.

OPTIONS must be ordered with table.

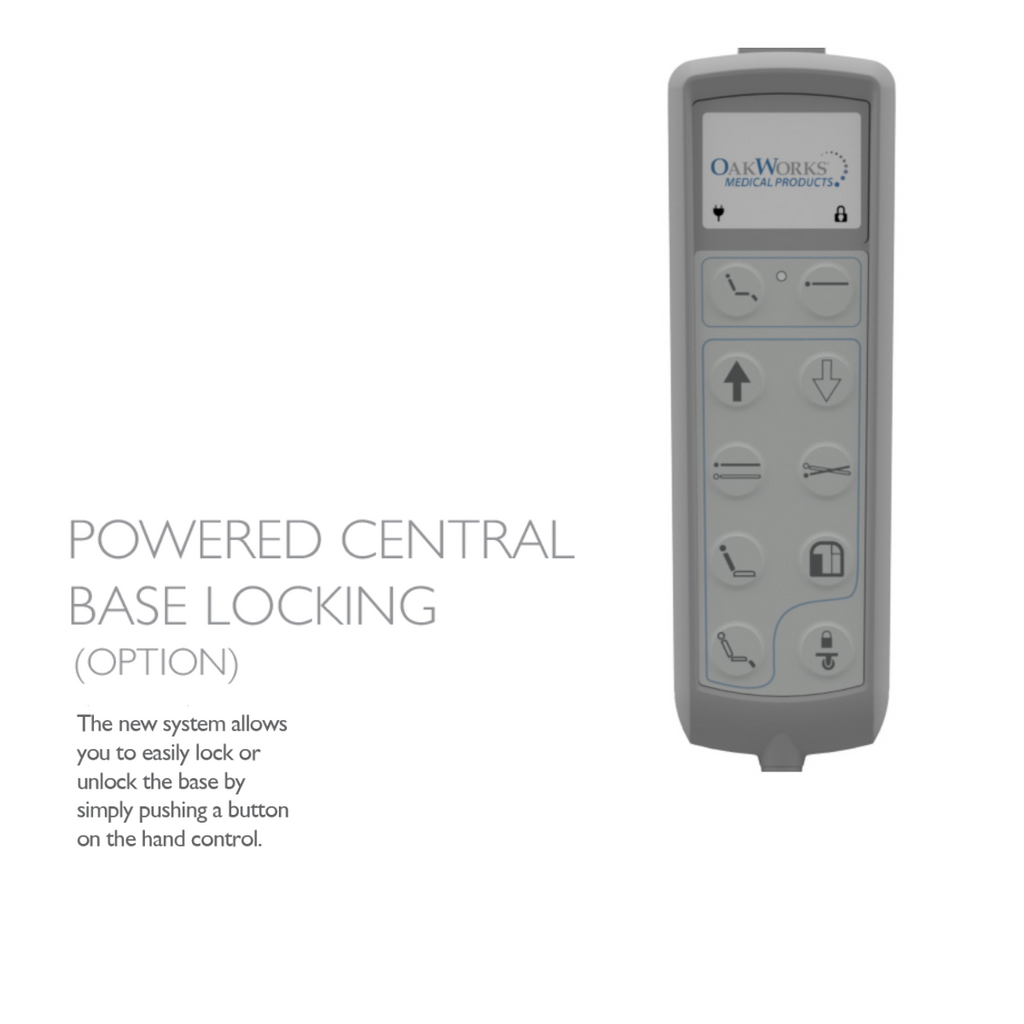

Central Base Locking System	Powered, lock and unlock using hand control
Foot Control	Height, Trendelenburg, Fowler
Side Rails (set of 2)	25.5” (65cm) long x 6” (15cm) tall (from surface of table)
Retractable footrests	Stirrups

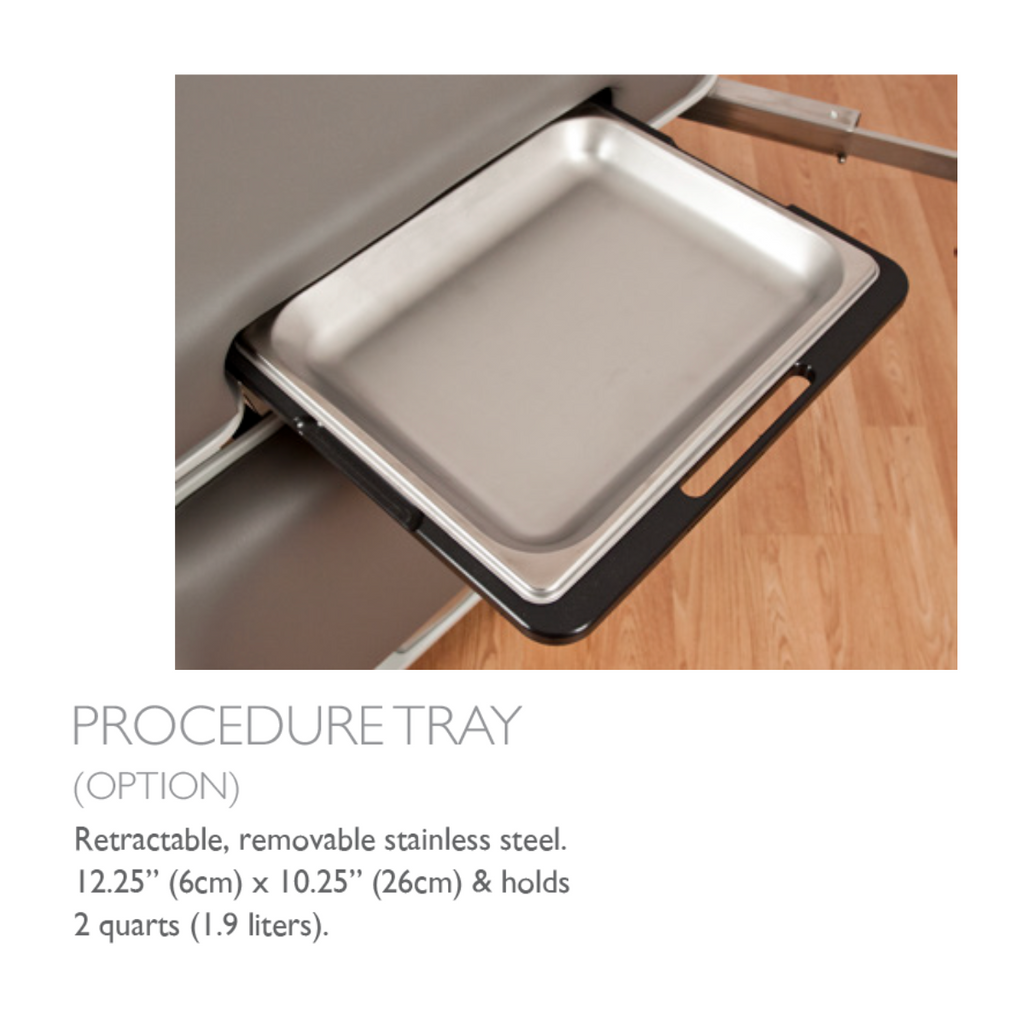

Procedure tray	12.25” (6cm) x 10.25” (26cm) and holds 2 quarts (1.9 liters)
Battery Backup	Capable of running during power failure
Non-USA electric system	please contact us for order details

ACCESSORIES order any time.	#
Detachable Arm Board	Use with T-rail adapter5”(13cm) wide x 20.5” (52cm) long	84943
T-rail Adapter 8” (20cm) long	Attaches to the table for use with USA format T-rail attachable accessories.	83139

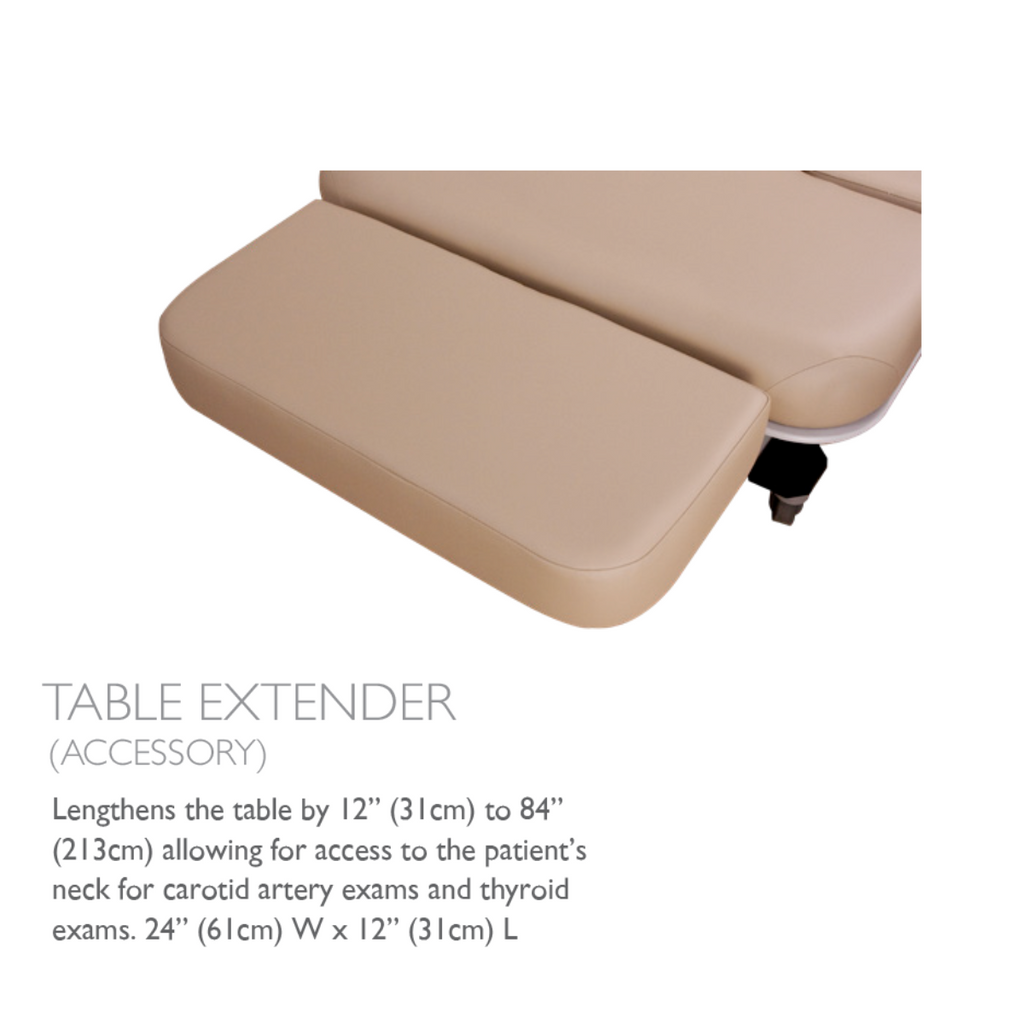

Table Extender	24” (61cm) wide x 12” (30cm) long	63487-T*

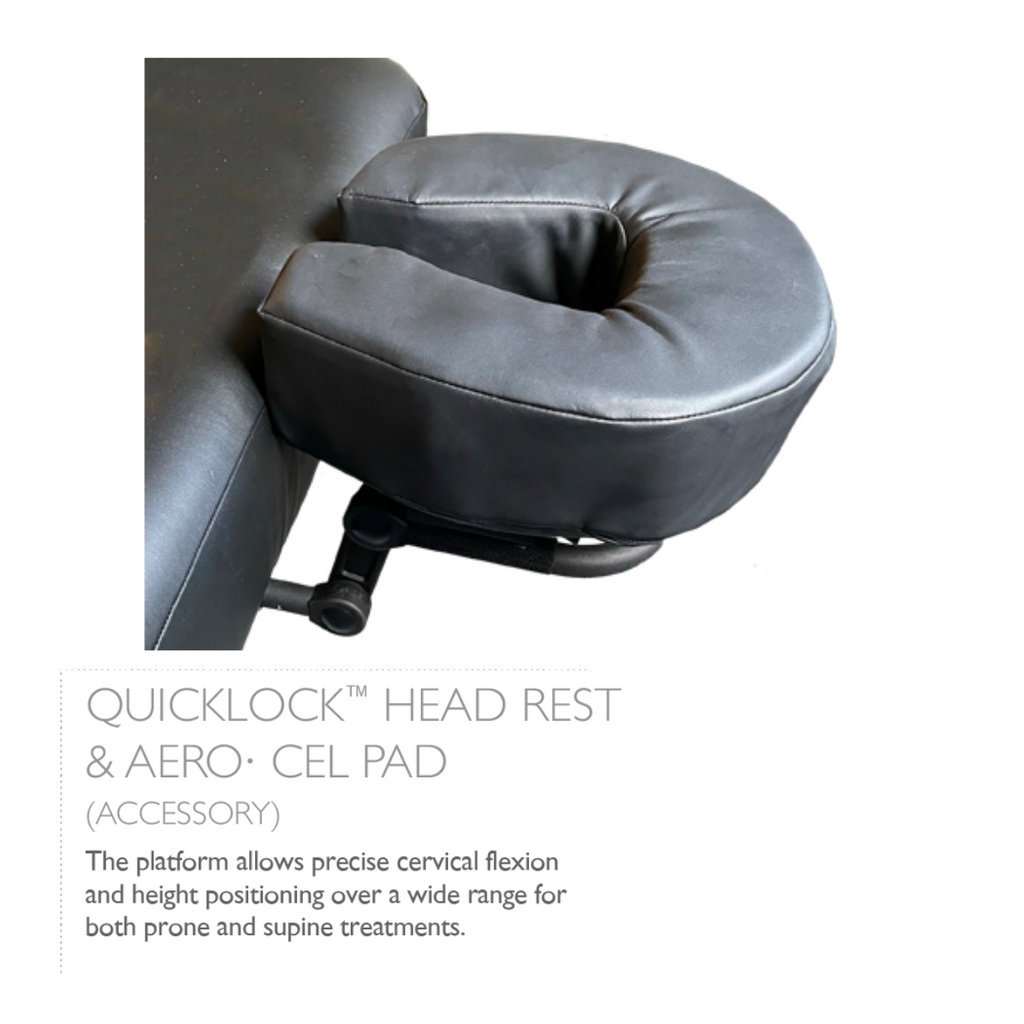

QuickLock™ Head Rest & AeroCel Pad	Comfortable, adjustable prone or supine support	PKG7554-T*

Shipping

Our products are sourced directly from the manufacturer, ensuring a seamless supply chain. Please note that the lead time for delivery is estimated to be 3-4 weeks, allowing for necessary processing and shipping procedures. In the event of urgent requirements, we do offer select models that are readily available for immediate shipment.

Our shipments are facilitated through reputable freight companies, guaranteeing safe and reliable transportation. Each product is carefully assembled prior to dispatch, eliminating the need for additional assembly upon arrival. As part of our standard service, curbside delivery is included with your order.

If you require a more specialized delivery service such as inside delivery, white-glove service, or a customized quote tailored to your specific needs, please do not hesitate to contact our dedicated team at 954-994-2526. We are committed to accommodating your individual requirements and ensuring a smooth delivery experience.
