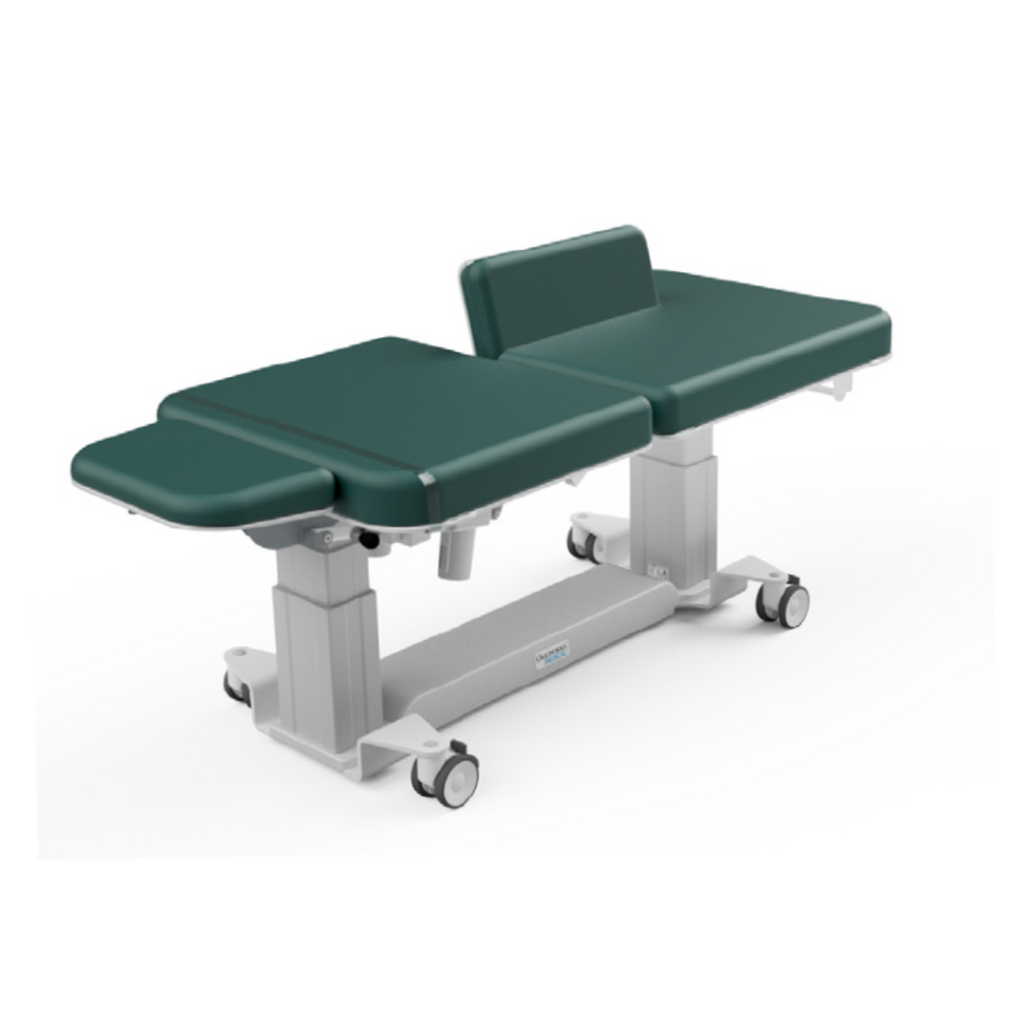

3 Section Top - 30 in. (76 cm) wide x 72 in. (183 cm) long
Backrest - 34 in. (86 cm) long
Seat - 26 in. (66cm) long
Leg Rest - 11 in. (28cm) long

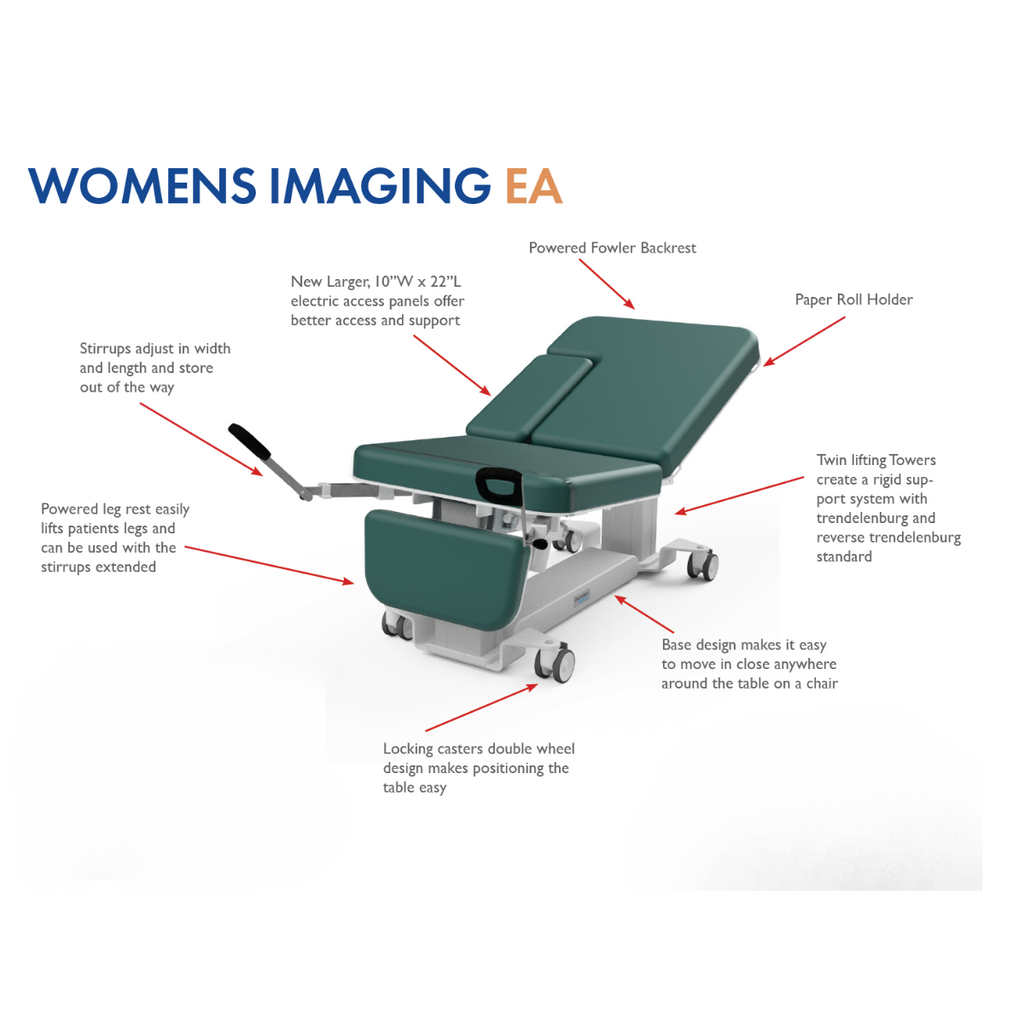

Motion 1 - Electric Height Range 19 in. - 33 in. (48-83cm)
Motion 2 - Electric Trendelenburg/Reverse Tilt ±18°

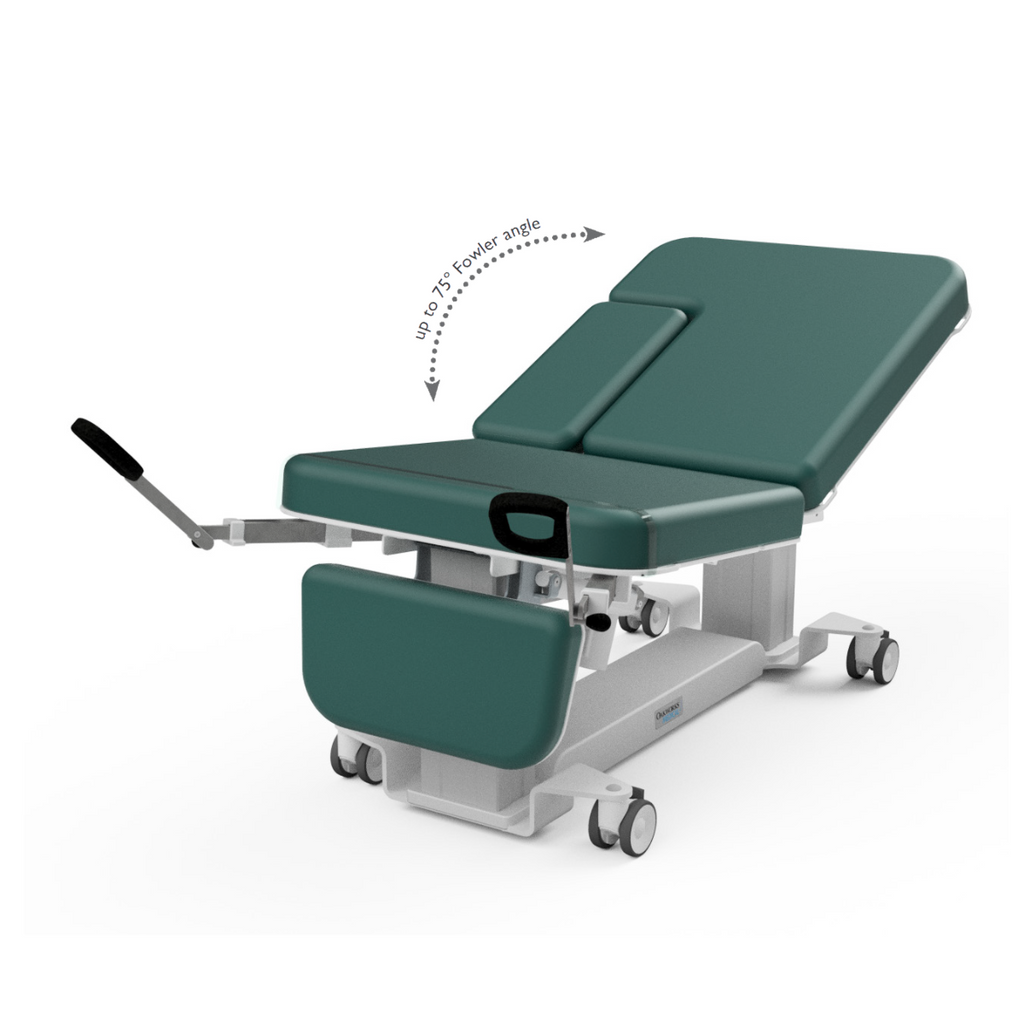

Motion 3 - Electric Fowler Backrest 0-75°
Motion 4 - Electric Leg Rest 0-90°

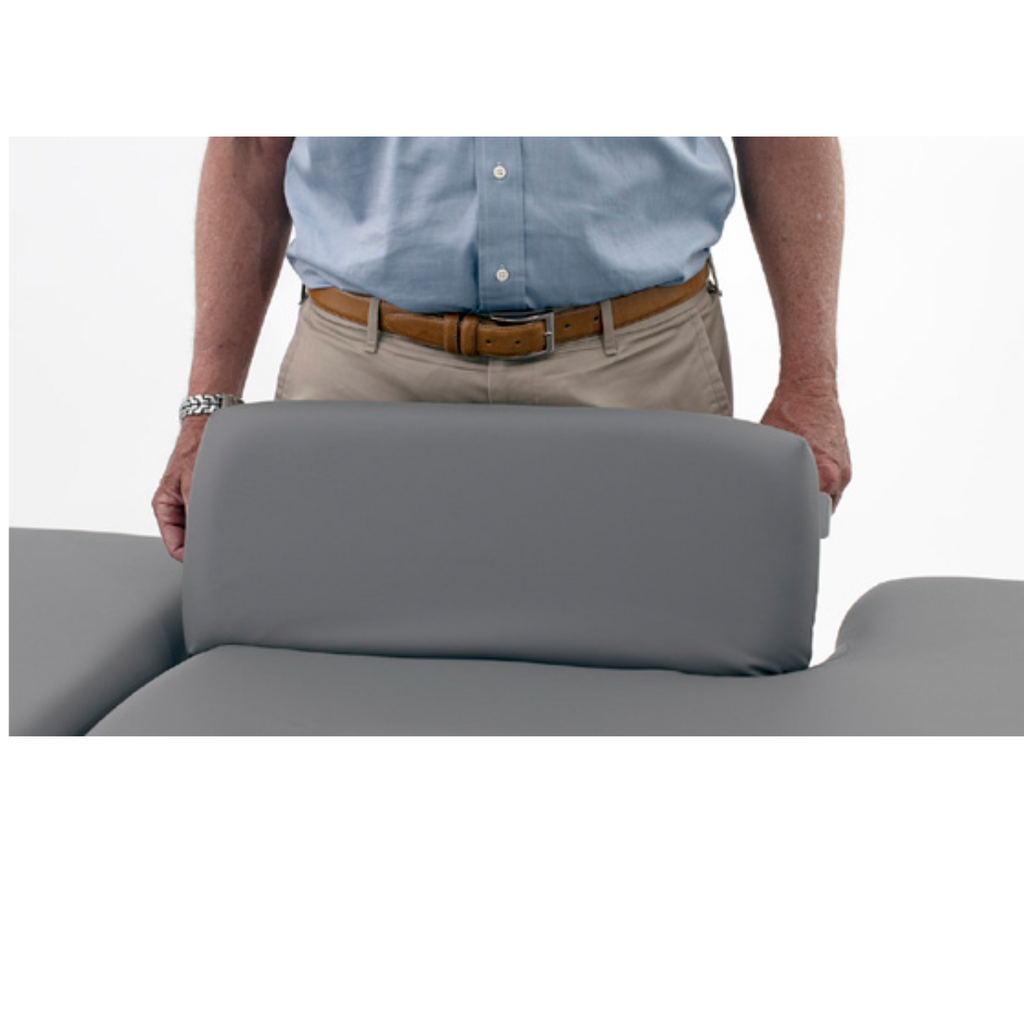

Motion 5 - Access/Back support: Electric 10” wide (25cm) x 22” long (56cm) 0-75° Access/Back support for patient positioning (right side)

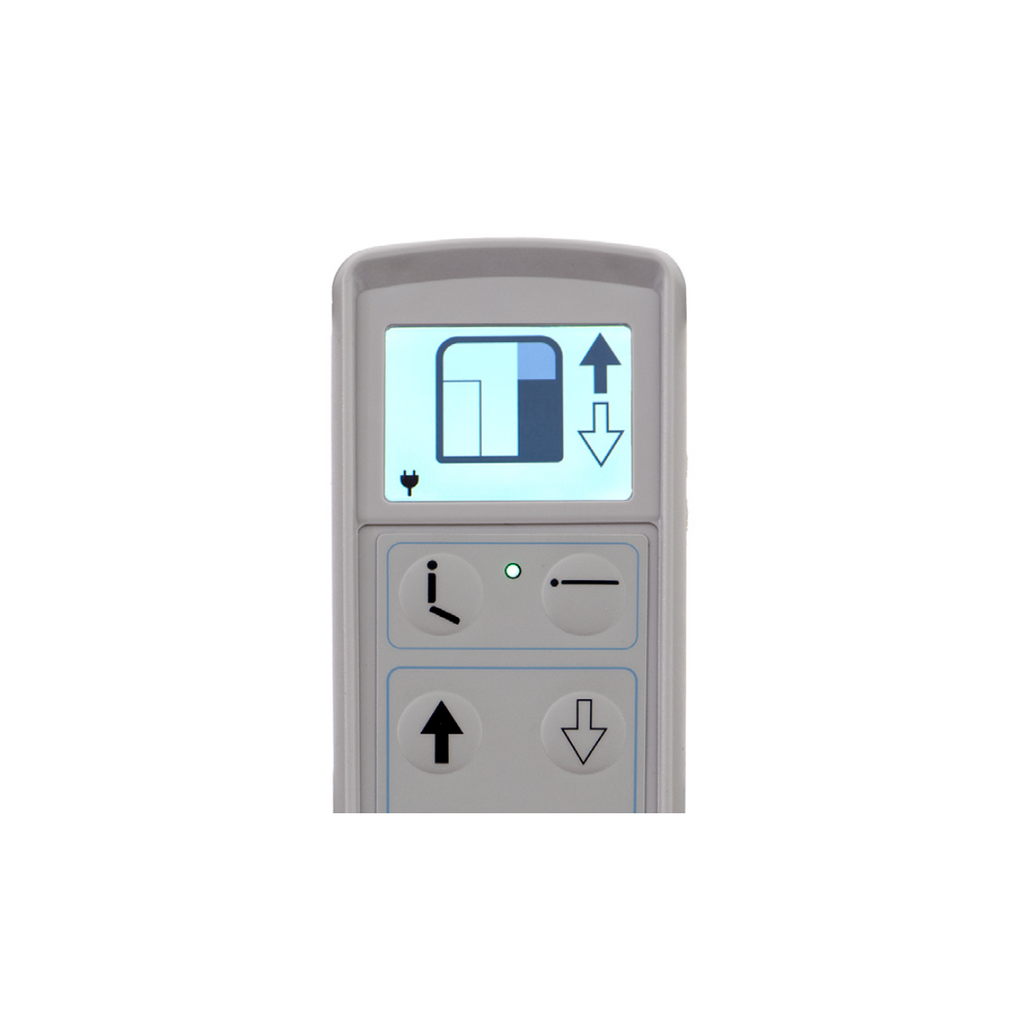

Controls - Multi-function hand control
Weight Capacity - 550lb (250kg)
Product Weight - 359lb (163kg)

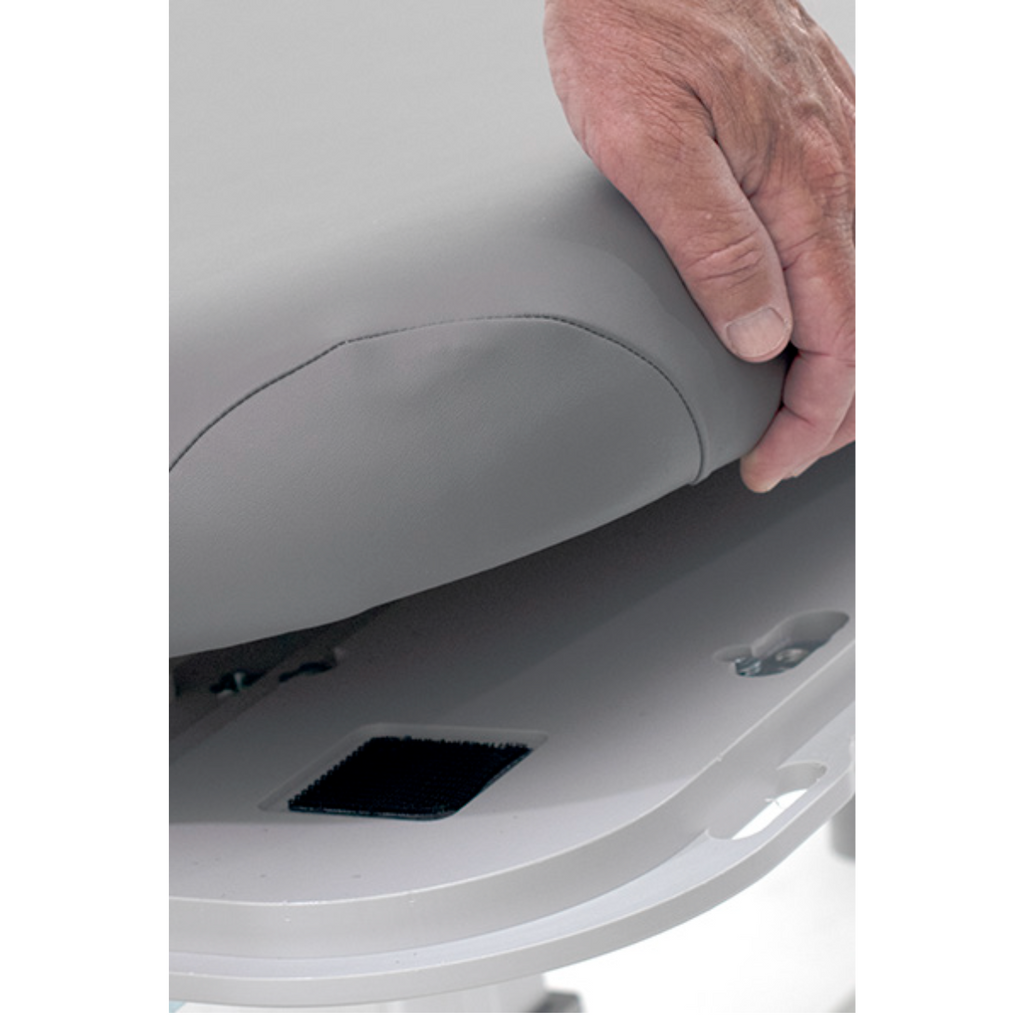

Removable Padding System - 3 in. (8cm) Comfort Foam ™

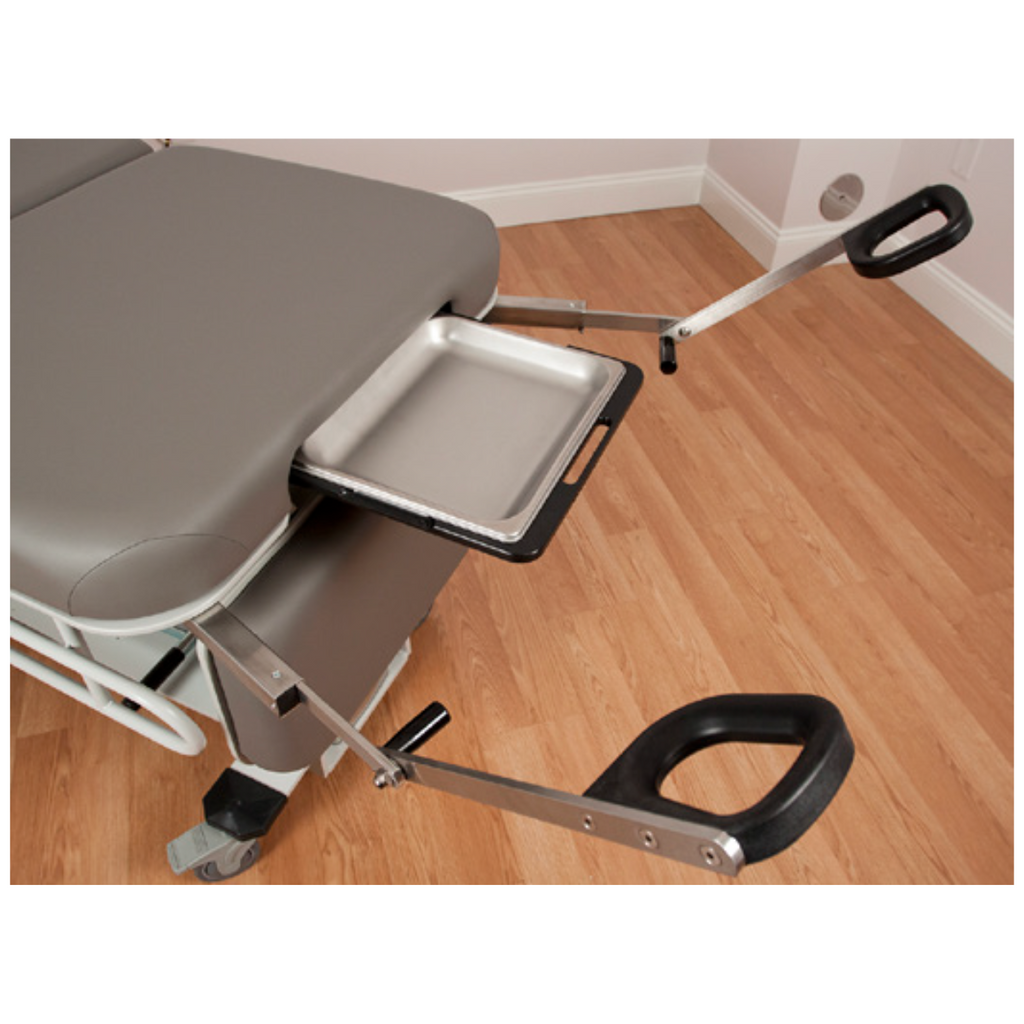

Included Features - 4 in. (10cm) locking casters, Adjustable access back support (right) 0-75°, Paper roll holder, Stirrups
Warranty - 3 years parts, 2 years labor
Safety Listings - FDA listed, CE marked, cETLus listed, CB Certificate
Fabric - Premium, PVC free TerraTouch™ Medical Grade Fabric is ISO 10993 Certified
Technical Specifications
FEATURES
3 Section Top
30” (76cm) wide x 72” (183cm) long
Backrest
34” (86cm) long
Seat
26” (61cm) long
Leg Rest
11” (28cm) long x 19” (48cm) wide
Motion 1
Electric Height Range 19” - 33” (48-83cm)
Motion 2
Electric Trendelenburg/Reverse Tilt ±18º
Motion 3
Electric Fowler Backrest 0-75°
Motion 4
Electric Leg Rest 0-90º
Access/Back Support
Electric 10”wide (25cm) X 22” long (56cm) 0-75º Access/Back support for patient positioning (right side)
Hand Control
All powered motions
Weight Capacity
550 lb (250kg)
Product Weight
359 lb (163kg)
Padding
3” (8cm) Comfort Foam™
Fabric
Premium, PVC free TerraTouch™
Included Features
4” (10cm) locking casters, Paper roll holder, Stirrups (Retractable foot rests)
Warranty
3 years parts, 2 years labor
Safety Listings
FDA listed, CE marked, cETLus listed, CB Certificate
Options
If you'd like to get more options, please contact us at 954-994-2526 to request a quote.
OPTIONS must be ordered with table.
Foot Control
Height, Trendelenburg, Fowler

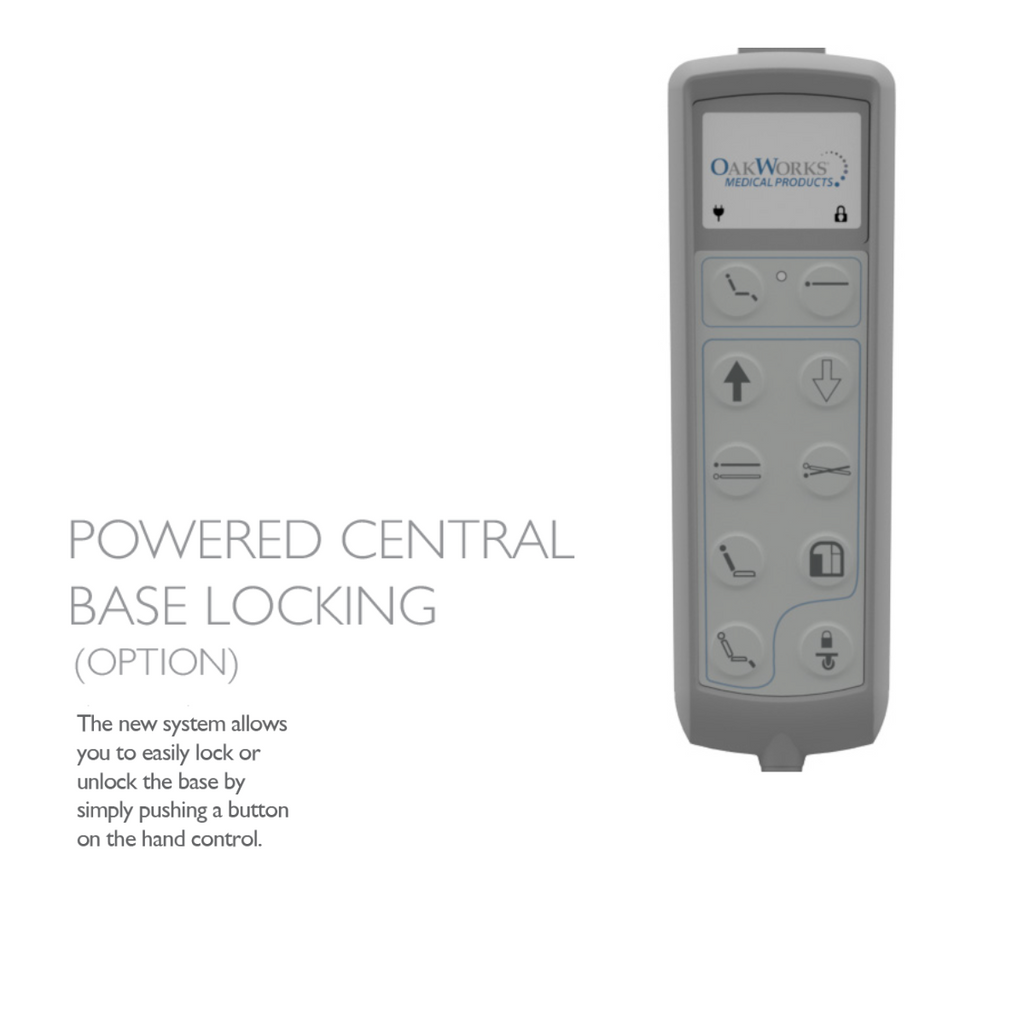

Powered Central Base Locking
Lock and unlock using hand control

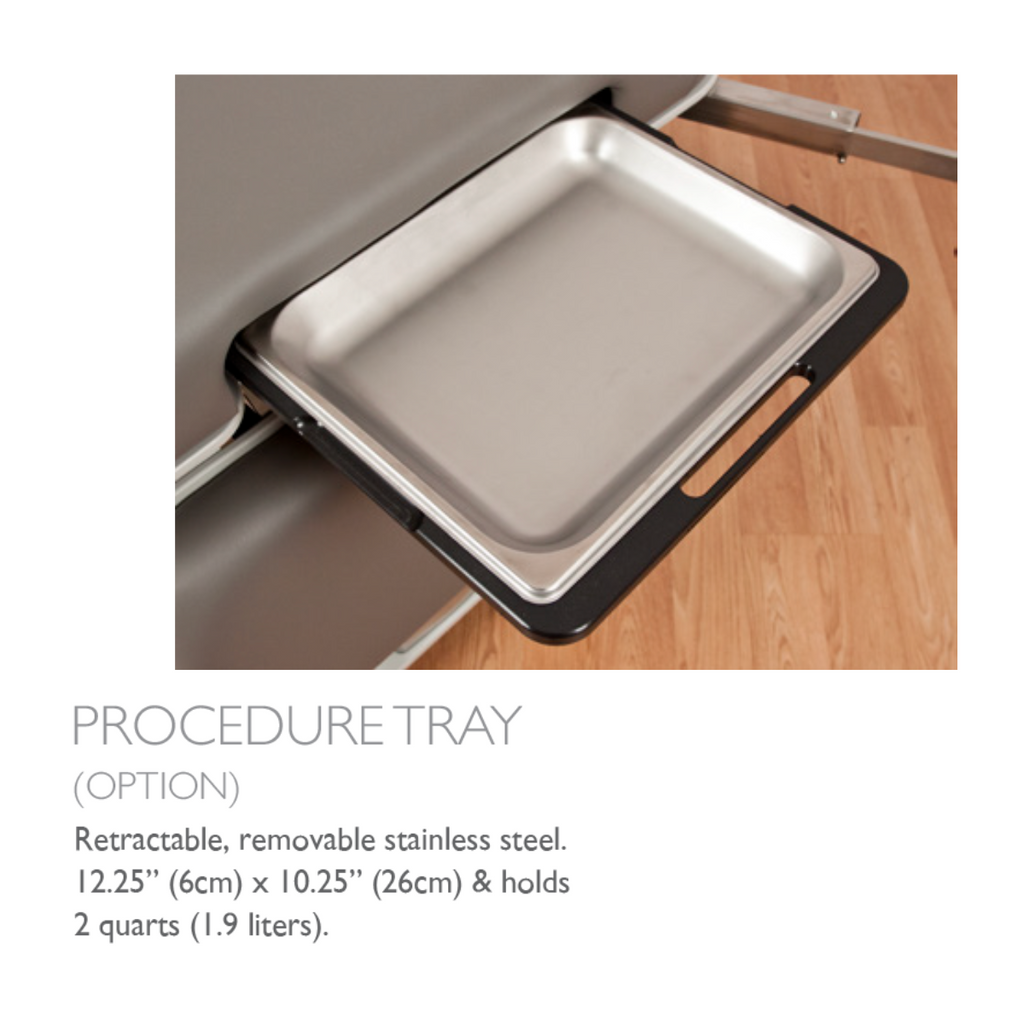

Procedure Tray30” (76 cm)
12.25” (6cm) x 10.25” (26cm) and holds 2 quarts (1.9 liters)
Side Rails (set of 2)
25.5” (65cm) long x 6” (15cm) tall (from surface of table)
Battery Backup
Capable of running during power failure
Non-USA Electric System
Please contact us for order details
ACCESSORIESorder any time.
#
Detachable Arm Board
Use with T-rail adapter5”(13cm) wide x 20.5” (52cm) long
84943

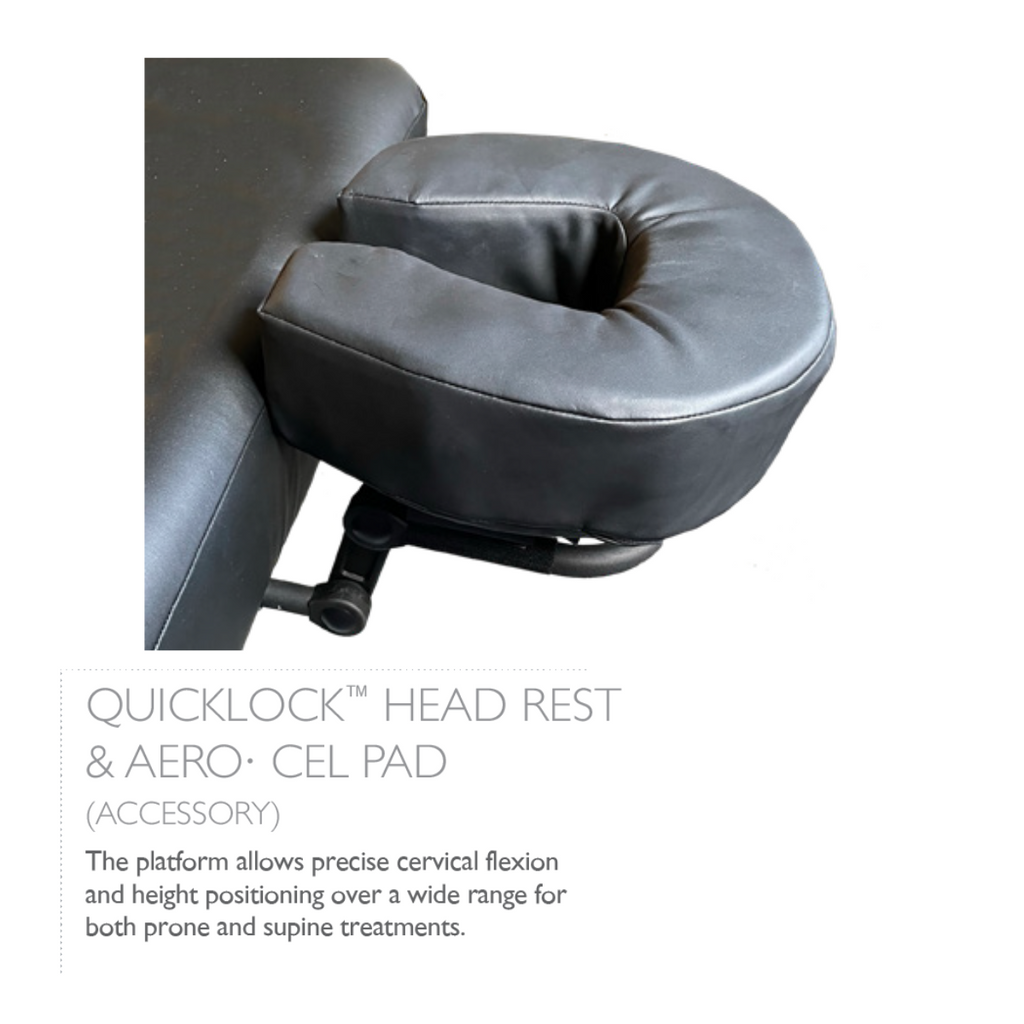

QuickLock™ Head Rest (black) & AeroCel Pad
Comfortable, adjustable prone or supine support
PKG7554*

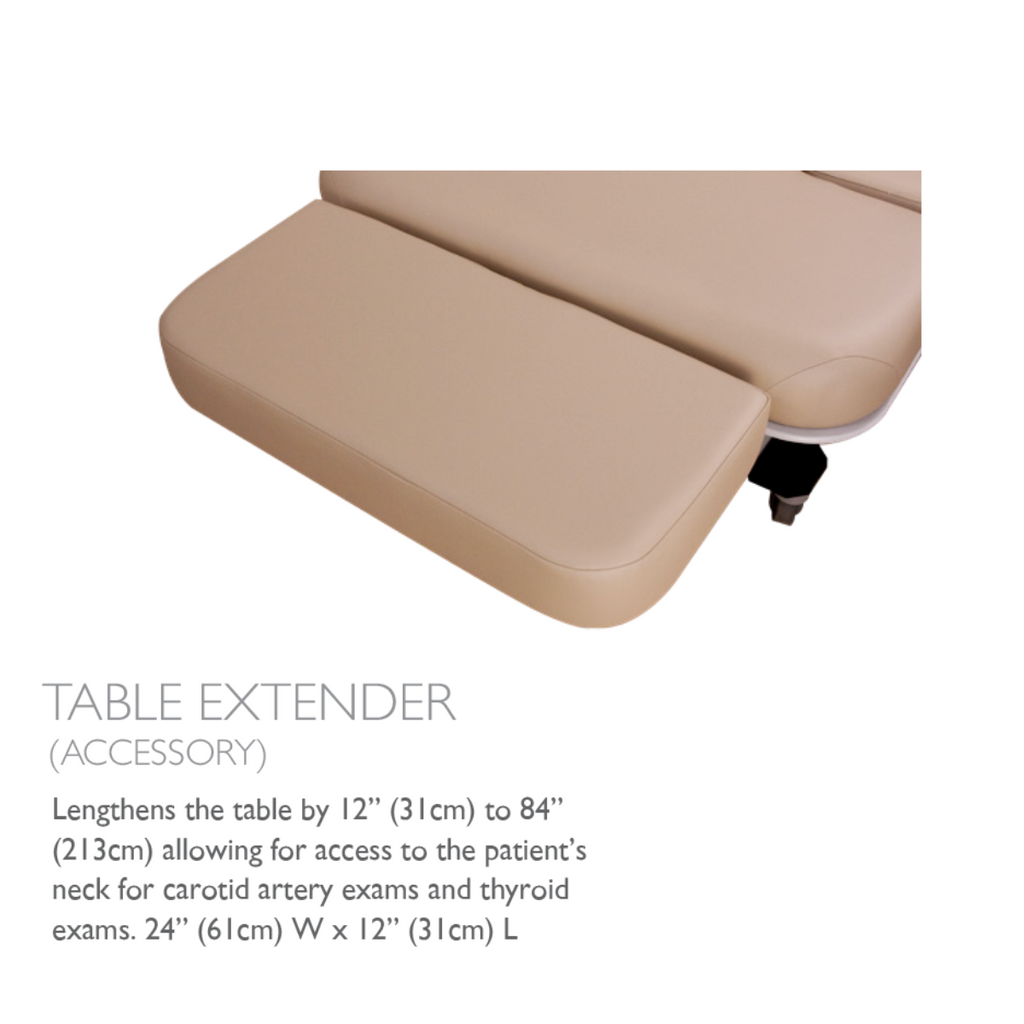

Table Extender
24” (61cm) wide x 12” (30cm) long
63487
T-rail Adapter 8” (20cm) long
Attaches to the backrest for use with USA format T-rail attachable accessories.
83139
Shipping
Our products are sourced directly from the manufacturer, ensuring a seamless supply chain. Please note that the lead time for delivery is estimated to be 3-4 weeks, allowing for necessary processing and shipping procedures. In the event of urgent requirements, we do offer select models that are readily available for immediate shipment.
Our shipments are facilitated through reputable freight companies, guaranteeing safe and reliable transportation. Each product is carefully assembled prior to dispatch, eliminating the need for additional assembly upon arrival. As part of our standard service, curbside delivery is included with your order.
If you require a more specialized delivery service such as inside delivery, white-glove service, or a customized quote tailored to your specific needs, please do not hesitate to contact our dedicated team at 954-994-2526. We are committed to accommodating your individual requirements and ensuring a smooth delivery experience.
Warranty
Our manufacturer directly manages the warranty for our products, providing a 3-year parts and 2-year labor coverage.
